3/4 HP Stainless Steel Magnetic Drive Gear Pump 115/230V MPN:SM20716CWM1-M47

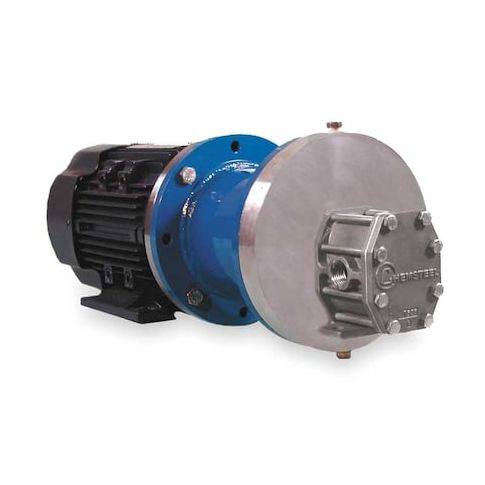

3/4 HP Stainless Steel Magnetic Drive Gear Pump 115/230V
This 3/4 HP Stainless Steel Magnetic Drive Gear Pump from Oberdorfer is designed for demanding industrial applications. Its totally enclosed fan-cooled motor and stainless steel construction ensure durability and resistance to corrosion in harsh environments. The pump's high-pressure rating and wide temperature range make it suitable for use in various industries, including chemical processing, food and beverage, and pharmaceutical manufacturing. Its compact design and easy maintenance features also make it an ideal choice for applications where space is limited. This pump is a reliable solution for transferring fluids with high viscosity in a wide range of temperatures.
Top product features:
- Magnetic drive design for leak-free operation
- Totally enclosed fan-cooled motor for efficient cooling
- Helical gear design for smooth and quiet operation
Top product applications:
- Chemical transfer and metering in laboratories and manufacturing facilities
- Water treatment and circulation in pools and spas
- Coolant circulation in industrial machinery and equipment
Rotary Gear Pump, Operating Pressure - Maximum 110 psi, Viscosity - Maximum 100 SUS, Phase Single, Nameplate Voltage 115/230V AC, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower - Maximum 3/4 hp, Operating Temperature - Minimum -50 Degrees F, Operating Temperature - Maximum 450 Degrees F, Media Intake Connection Size 1/2 in, Media Intake Connection Type FNPT, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type FNPT, Gear Design Helical
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 45 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 25.00
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 71.00
Product info last updated on February 5, 2026 11:02am UTC
Category: Positive Displacement Pumps
