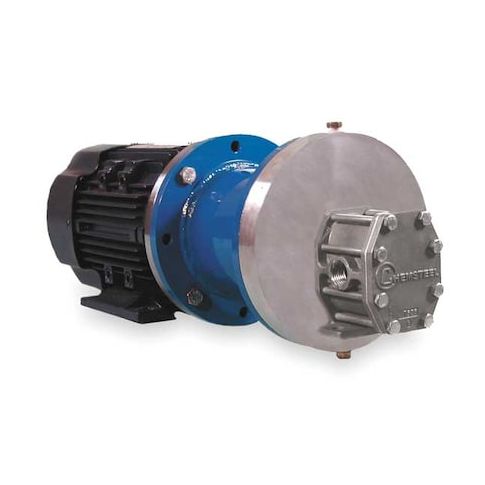

1-1/2 HP Stainless Steel Magnetic Drive Gear Pump 230/460V MPN:SM21416CWM1-T97
1-1/2 HP Stainless Steel Magnetic Drive Gear Pump 230/460V
The Oberdorfer 1-1/2 HP Stainless Steel Magnetic Drive Gear Pump is a reliable and versatile solution for various industrial applications. Suitable for use in high-temperature environments up to 450°F and extreme low-temperature conditions down to -50°F, this pump excels in demanding settings. Its stainless steel construction and magnetic drive design ensure resistance to corrosion and efficient operation. With a maximum operating pressure of 110 psi and viscosity of 100 SUS, this pump handles a wide range of fluids and applications, including chemical processing, oil and gas, and wastewater treatment. Its compact design and robust construction make it an ideal choice for industries requiring reliable fluid transfer and circulation.
Top product features:
- Magnetic drive design allows for chemical compatibility and eliminates the risk of leakage or contamination.
- Totally Enclosed Fan Cooled motor enclosure provides a safe and reliable operating environment.
- Helical gear design enables smooth and efficient operation, reducing wear and tear on the pump.
Top product applications:
- Chemical Transfer Pump
- Heat Transfer Pump
- Industrial Process Pump
Rotary Gear Pump, Operating Pressure - Maximum 110 psi, Viscosity - Maximum 100 SUS, Phase Three, Nameplate Voltage 230/460V AC, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower - Maximum 1 1/2 hp, Operating Temperature - Minimum -50 Degrees F, Operating Temperature - Maximum 450 Degrees F, Media Intake Connection Size 1/2 in, Media Intake Connection Type FNPT, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type FNPT, Gear Design Helical
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 45 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 25.00
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 71.00
Product info last updated on February 12, 2026 6:46pm UTC
Category: Positive Displacement Pumps
