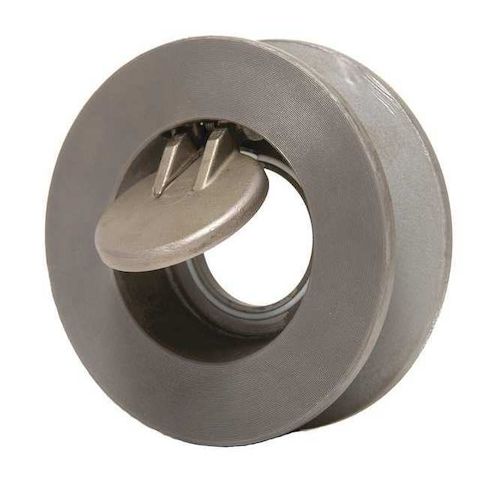

12" Flanged Ductile Iron Wafer Check Valve MPN:12SD12-LSBS-P
The Champion 12in Flanged Ductile Iron Wafer Check Valve is a reliable and efficient solution for various industrial applications. Its single flow design and inline wafer mechanism make it ideal for use in horizontal and vertical piping systems, ensuring smooth and unidirectional flow. With a cracking pressure of 0.241 psi, this valve is perfect for applications where precise control is necessary. Suitable for use in water and steam systems, it can withstand high pressures up to 285 psi at 100°F. Its durable construction and long-lasting seals ensure minimal maintenance and extended lifespan, making it a great choice for industries such as chemical processing, oil and gas, and power generation.
Top product features:
- Flanged design for easy connection and disconnection
- Single flow design for efficient fluid flow
- 316 Stainless Steel spring for increased durability and resistance to corrosion
Top product applications:
- Water treatment plants
- Industrial process piping systems
- Steam system applications
The CHAMPION 12SD12-LSBS-P is a 12 in flanged wafer check valve with a ductile iron body and swing check mechanism. It is intended for one-way flow control in process piping for oil and water service and closes in response to reverse flow. The inline wafer body supports horizontal or vertical mounting. Cracking pressure: 0.241 psi. Rated flow: 3,850 gpm.
Key Features:
- Nominal valve size: 12 in
- connection size side 1: 12 in
- connection size side 2: 12 in
- Connection type: Flange x Flange
- wafer end style on both sides
- ANSI flange class: Class 125
- Body material: Ductile iron
- Check mechanism: Swing
- flow design: Single
- valve body style: Inline
- Seal material: Buna-N
- seat material: Buna-N
- Check mechanism material: 316 stainless steel
- spring material: 316 stainless steel
- Maximum water pressure: 285 psi at 100 degrees F
- maximum operating pressure: 285 psi
- Operating temperature range: -70 degrees F to 250 degrees F
- Overall length: 11.63 in
- overall height: 16 1/8 in
- width: 3 1/2 in
- Meets multiple applicable ASME, API, and ASTM standards
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 16.00
- Package Height: 8.00
- Package Weight: 124.00
