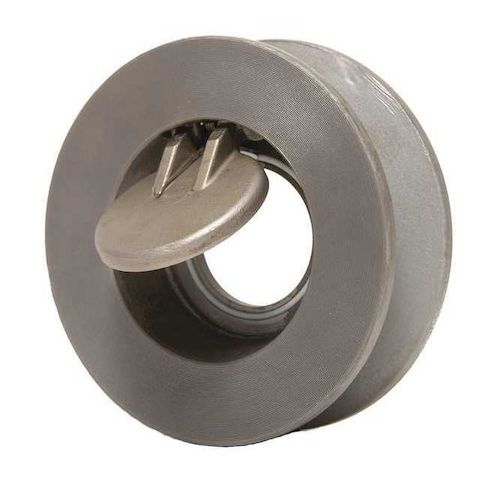

2-1/2" Flanged Carbon Steel Wafer Check Valve MPN:2.5SD15-CSBS-R
The Champion 2-1/2in Flanged Carbon Steel Wafer Check Valve is a reliable and efficient solution for a wide range of applications, including industrial, commercial, and residential use. Its single-flow design and inline wafer mechanism ensure smooth and consistent fluid flow, while its carbon steel body provides durability and resistance to corrosion. This valve is ideal for use in horizontal or vertical orientations and can withstand high water pressures up to 285 psi at 100°F. Suitable for applications such as water treatment, chemical processing, and HVAC systems, this valve offers a cost-effective and long-lasting solution for any fluid control need.
Top product features:
- 2-1/2in Flanged Design for secure flange connections
- Single Flow Design for efficient fluid flow and minimal pressure drop
- Buna-N Seat and 316 Stainless Steel Spring for reliable sealing and durability
Top product applications:
- Air conditioning and refrigeration systems
- Oil and gas processing and transmission
- Chemical processing and handling
CHAMPION 2.5SD15-CSBS-R is a 2-1/2 in inline wafer check valve with a carbon steel body, flange x flange wafer design, and swing check mechanism. It is designed for process piping and use with oil and water, and is configured with a swing check mechanism for one-direction flow applications. Cracking pressure: 0.189 psi. Mounting orientation: horizontal or vertical.
Key Features:
- Nominal size: 2-1/2 in with 2-1/2 in connections on both sides.
- Connection style: Flange x Flange wafer design
- ANSI Flange Class 150.
- Body and construction: Carbon steel body with inline wafer body style.
- Check mechanism: Swing design with 316 stainless steel check mechanism and spring.
- Seal and seat materials: Buna-N seal and Buna-N seat.
- Pressure rating: 285 psi at 100 Degrees F maximum water pressure
- 285 psi maximum operating pressure.
- Temperature range: -70 Degrees F minimum operating temperature to 250 Degrees F maximum operating temperature.
- Flow rating: 190 gpm.
- Dimensions: 4-7/8 in length, 1-7/8 in width, 4-7/8 in overall height.
- Standards: Meets multiple ASME, API, and ASTM standards.
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 3.00
- Package Weight: 6.00
