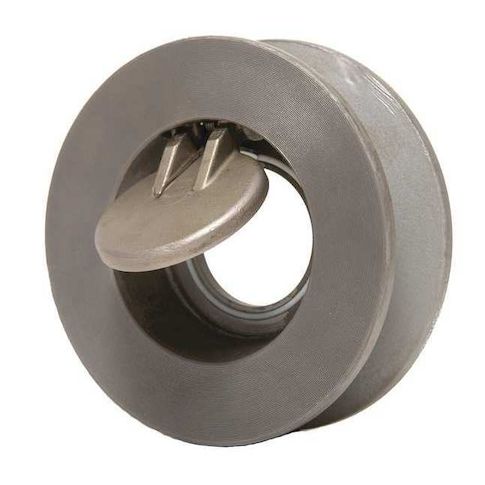

4" Flanged Carbon Steel Wafer Check Valve MPN:4SD15-CSBS-R
This 4in Flanged Carbon Steel Wafer Check Valve from Champion is designed for reliable flow control in a variety of applications. Its single flow design and inline wafer mechanism make it ideal for use in horizontal or vertical piping systems. The valve's carbon steel body and 316 stainless steel spring ensure durability and resistance to corrosion, while the Buna-N seal and seat provide a tight shut-off. Suitable for use in high-temperature water applications up to 250°F and water pressure up to 285 psi, this valve is perfect for use in industrial processes, such as chemical processing, oil and gas, and power generation.
Top product features:
- 4in Flanged Carbon Steel Wafer Check Valve provides a single flow design.
- The valve features a cracking pressure of 0.184 psi.
- The valve includes a 316 Stainless Steel spring.
Top product applications:
- Liquid transfer in industrial settings
- Chemical processing plants
- Pulp and paper mills
The CHAMPION 4SD15-CSBS-R is a 4 in. inline wafer check valve with a flanged connection pattern for process piping systems handling oil and water. It uses a swing check mechanism for one-way flow applications and reverse-flow closure. The valve features a carbon steel body, Buna-N seat and seal, and 316 stainless steel internal components that are specified for horizontal and vertical mounting orientations.
Key Features:
- Nominal valve size: 4 in., with 4 in. connection size on both sides
- Connection style: Flange x Flange, wafer type, ANSI Class 150
- Body design: Inline wafer with single-flow design and inline body style
- Body material: Carbon steel
- Check mechanism: Swing with 316 stainless steel check mechanism and spring
- Seal and seat material: Buna-N
- Cracking pressure: 0.184 psi
- Maximum operating pressure: 285 psi
- maximum water pressure: 285 psi at 100 degrees F
- Operating temperature range: -70 degrees F to 250 degrees F
- Flow rating: 295 gpm
- Mounting orientation: Horizontal or vertical
- Meets multiple ASME, API, and ASTM standards
- Overall length: 4.5 in.
- overall height: 6 7/8 in.
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 8.00
- Package Height: 3.00
- Package Weight: 13.00
