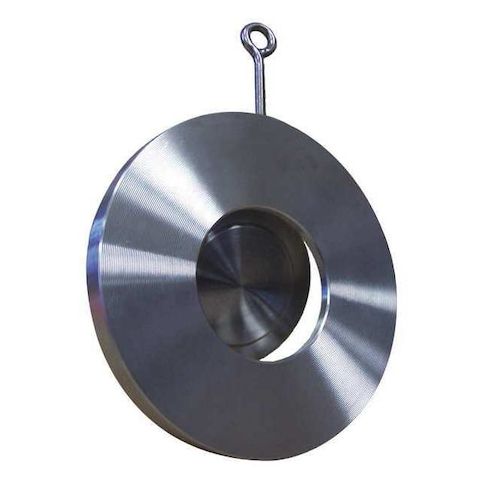

2-1/2" Flanged Stainless Steel Wafer Check Valve MPN:2.5SDS15-SSP-R
The Champion 2-1/2in Flanged Stainless Steel Wafer Check Valve is designed for reliable flow control in high-temperature applications. Suitable for use in horizontal and vertical positions, this valve features a 316 stainless steel body and seal, ensuring durability and resistance to corrosion. With a maximum temperature of 1,000 Degrees F and a maximum water pressure of 275 psi, this valve is ideal for use in industrial processes, including oil and gas, chemical, and power generation. Its compact design and easy installation make it a convenient choice for a variety of applications, including water treatment, HVAC, and steam systems.
Top product features:
- 2-1/2in Flanged Stainless Steel Wafer Check Valve is designed for inline use
- It features a single flow design
- The valve has a cracking pressure of 0.01 psi
Top product applications:
- Water treatment systems
- Industrial process control
- Power generation
The CHAMPION 2.5SDS15-SSP-R is a 2-1/2 in flanged stainless steel wafer check valve for process piping systems. It features a single-flow, inline wafer design with a swing check mechanism, configured for forward flow and reverse-flow closure. The valve is specified for gas, liquid, and steam service in compatible applications and can be mounted horizontally or vertically.
Key Features:
- 2-1/2 in nominal valve and pipe size with flange x flange connections
- ANSI Flange Class: Class 150
- Body Material: 316 stainless steel
- Check Mechanism: Swing
- Mechanism and Body Design: Inline wafer
- Flow Design: Single
- Cracking Pressure: 0.01 psi
- Flow Rate: 71 gpm
- Max. Water Pressure: 275 psi at 100 degrees F
- Maximum Operating Pressure: 275 psi
- Operating Temperature Range: -450 degrees F to 1,000 degrees F
- Seal Material: 316 stainless steel
- Seat Material: Metal/stainless steel
- Spring Material: 316 stainless steel
- Mounting Orientation: Horizontal or vertical
- Compliance: Meets multiple ASME, API, and MSS standards
- Standards: ASTM A351 CF8M
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 8.75
- Package Height: 3.50
- Package Weight: 4.00
