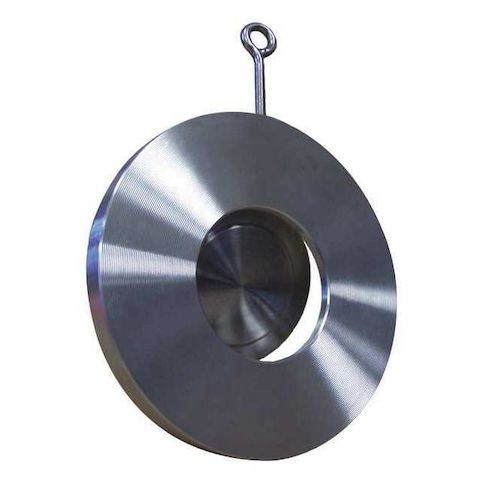

5" Flanged Stainless Steel Wafer Check Valve MPN:5SDS15-SSP-R
This 5in Flanged Stainless Steel Wafer Check Valve from Champion is a reliable and efficient solution for various industrial applications. Suitable for use in horizontal and vertical orientations, this valve features a single flow design and is constructed from high-quality 316 stainless steel to ensure maximum durability and resistance to corrosion. With a cracking pressure of 0.006 psi and a maximum temperature of 1,000 degrees F, this valve is ideal for use in high-pressure steam and high-temperature water applications, including chemical processing, oil and gas, and power generation industries. Its compact design and easy installation make it a popular choice among engineers and maintenance personnel.
Top product features:
- Flanged design allows for easy installation and replacement
- Single flow design enables efficient fluid flow in one direction
- 316 Stainless Steel body and seal materials provide high temperature resistance and corrosion protection
Top product applications:
- Steam Distribution Systems
- Water Treatment Plants
- Industrial Process Control Systems
The CHAMPION 5SDS15-SSP-R is a 5 in. flanged stainless steel wafer check valve for process piping. It features a single-flow inline wafer design for one-direction flow applications with a swing check mechanism for reverse-flow checking. The body and internal components are constructed of 316 stainless steel with flange x flange connections, and the valve can be mounted horizontally or vertically.
Key Features:
- Nominal valve size: 5 in. with 5 in. flange connections on both sides
- Body, check mechanism, seal, and spring material: 316 stainless steel
- Seat material: Metal
- stainless steel
- Connection type: Flanged
- flange x flange
- Check mechanism: Swing
- Body design: Inline wafer
- Flow design: Single
- Cracking pressure: 0.006 psi
- Flow rating: 342 gpm
- Maximum operating pressure: 275 psi
- maximum water pressure: 275 psi at 100 degrees F
- Operating temperature range: -450 degrees F to 1,000 degrees F
- Media: Gas service, liquids, steam
- Mounting orientation: Horizontal, vertical
- ANSI flange class: Class 150
- Compliance: Meets multiple ASME, API, and MSS standards
- Standards: ASTM A351 CF8M
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 8.75
- Package Height: 3.50
- Package Weight: 9.00
