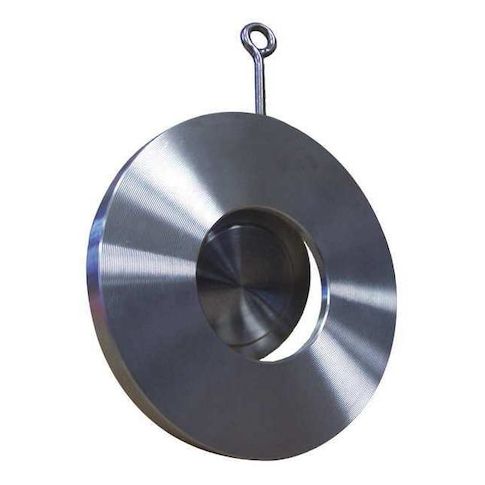

10" Flanged Stainless Steel Wafer Check Valve MPN:10SDS15-SSP-R
10" Flanged Stainless Steel Wafer Check Valve
CHAMPION 10SDS15-SSP-R is a 10 in. flanged stainless steel wafer check valve with an inline body design and swing check mechanism. It is used in process piping to allow flow in one direction and close automatically to help prevent reverse flow. This valve is specified for gas service, liquids, and steam, and can be mounted horizontally or vertically.
Key Features:
- 10 in. nominal valve size with flange x flange connections
- Inline wafer body design with single-flow configuration
- 316 stainless steel body, check mechanism, seal, and spring
- Metal seat with stainless steel seat material
- ANSI flange class: Class 150
- Cracking pressure: 0.006 psi
- Maximum operating pressure: 275 psi
- Maximum water pressure: 275 psi at 100 degrees F
- Operating temperature range: -450 degrees F to 1,000 degrees F
- Flow capacity: 1,272 gpm
- Mounting orientation: horizontal or vertical
- Compliance: Meets multiple applicable ASME, API, and MSS standards
- Standard: ASTM A351 CF8M
- No counterweight
- standard check configuration
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.75
- Package Width: 13.75
- Package Height: 6.00
- Package Weight: 36.00
