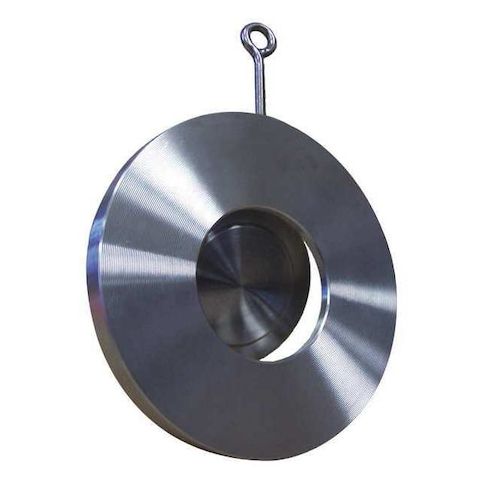

3" Flanged Stainless Steel Wafer Check Valve MPN:3SDS15-SSP-R
The Champion 3in Flanged Stainless Steel Wafer Check Valve is a reliable and efficient solution for various industrial applications. Suitable for use in horizontal or vertical orientations, this valve ensures smooth flow control while preventing backflow and pressure loss. Its 316 stainless steel construction provides excellent corrosion resistance and durability up to 1,000°F. Ideal for use in water, steam, and other fluid systems, this valve is perfect for applications in chemical processing, power generation, and oil and gas industries. Its compact design and easy installation make it a valuable addition to any piping system.
Top product features:
- 3in Flanged Stainless Steel Wafer Check Valve has a single flow design.
- The valve has a cracking pressure of 0.01 psi.
- The valve is designed for horizontal and vertical mounting orientations.
Top product applications:
- Water Treatment Plants
- Steam Power Plants
- Industrial Process Plants
CHAMPION 3SDS15-SSP-R is a 3 in flanged stainless steel wafer check valve with a swing check mechanism for one-way flow control in process piping. It is designed for gas service, liquids, and steam, and installs inline in either horizontal or vertical orientations for reverse-flow control applications.
Key Features:
- 3 in nominal valve size with flange x flange connections
- ANSI Flange Class 150.
- Inline wafer body design with single-flow configuration and swing check mechanism.
- Body, check mechanism, seal, and spring material: 316 stainless steel.
- Seat material: stainless steel/metal.
- Cracking pressure: 0.01 psi.
- Flow rate: 115 gpm.
- Maximum operating pressure: 275 psi
- maximum water pressure: 275 psi at 100 degrees F.
- Operating temperature range: -450 degrees F to 1,000 degrees F.
- Overall length: 5.38 in
- overall height: 5 3/8 in.
- Compliance: Meets multiple ASME, API, and MSS standards.
- Material standard: ATSM A351 CF8M.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.20
- Package Height: 1.30
- Package Weight: 4.21
