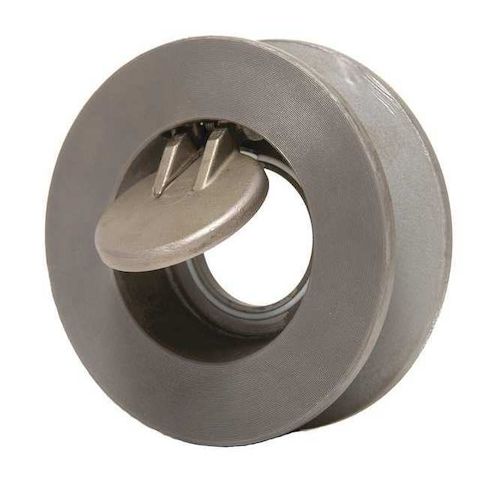

10" Flanged Stainless Steel Wafer Check Valve MPN:10SD15-SSVS-R
The 10in Flanged Stainless Steel Wafer Check Valve from Champion is a reliable and efficient solution for various industrial applications. Designed for use in both horizontal and vertical orientations, this valve ensures smooth and uninterrupted flow in piping systems. Its stainless steel body and Viton seals provide excellent corrosion resistance and durability, making it suitable for high-temperature and high-pressure applications. Ideal for use in chemical processing, oil and gas, and power generation industries, this valve ensures safe and reliable operation while withstanding extreme conditions, including temperatures up to 400°F and pressures up to 275 psi.
Top product features:
- Single flow design allows for efficient fluid flow
- Flanged connection enables easy installation and maintenance
- Viton seal material provides high-temperature resistance up to 400 degrees F
Top product applications:
- Industrial process control systems
- Oil and gas production and transmission
- Power generation and distribution plants
CHAMPION 10SD15-SSVS-R is a 10 in inline wafer check valve with flanged wafer connections for process piping systems handling oil or water. It uses a swing check mechanism intended for one-way flow and reverse-flow checking. The valve features a 316 stainless steel body and internal mechanism, a 0.23 psi cracking pressure, and mounting orientations: horizontal or vertical.
Key Features:
- 10 in nominal valve size with 10 in connections on both sides
- Connection type: flanged
- side connections: wafer x wafer
- Body material: 316 stainless steel
- Check mechanism: swing
- Mechanism and body design: inline wafer
- valve body style: inline
- For media: oil, water
- Flow design: single
- Cracking pressure: 0.23 psi
- Maximum operating pressure: 275 psi
- maximum water pressure: 275 psi at 100 degrees F
- Operating temperature range: -40 degrees F to 400 degrees F
- Seal material: FKM/Viton
- seat material: FKM/Viton
- Spring material: 316 stainless steel
- ANSI flange class: Class 150
- Meets multiple ASME, API, and ASTM standards
- Overall length: 9.56 in
- overall height: 13 3/8 in
- Silent check: standard
- counterweight: no counterweight
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 14.00
- Package Height: 6.00
- Package Weight: 82.00
