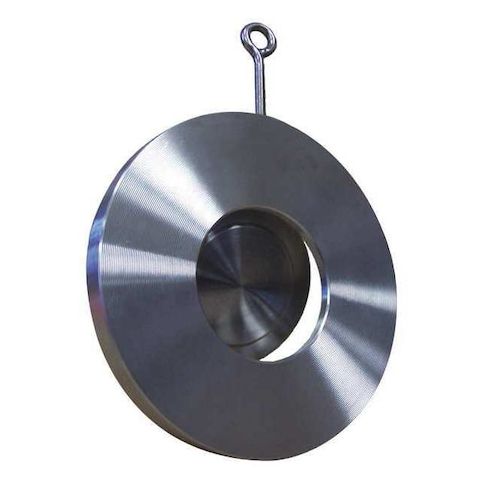

8" Flanged Stainless Steel Wafer Check Valve MPN:8SDS15-SSP-R
The Champion 8in Flanged Stainless Steel Wafer Check Valve is a reliable and durable solution for various industrial applications. Designed for inline use, this valve features a single flow design and a wafer body made of 316 stainless steel, ensuring high-temperature resistance up to 1,000°F. Suitable for horizontal and vertical mounting, it provides a tight seal with a cracking pressure of 0.006 psi. Ideal for use in water and steam systems, this valve offers a maximum water pressure of 275 psi at 100°F, making it a valuable addition to any industrial piping system.
Top product features:
- 8in Flanged Stainless Steel Wafer Check Valve is designed for single flow direction
- The valve body is made of 316 Stainless Steel for corrosion resistance
- The valve has a cracking pressure of 0.006 psi for precise control
Top product applications:
- Water treatment plants
- Industrial process control systems
- Pulp and paper mills
The CHAMPION 8SDS15-SSP-R is an 8 in. flanged stainless steel wafer check valve for process piping. It features an inline wafer design with a swing check mechanism for one-direction flow applications and reverse-flow limitation. This valve is rated for gas service, liquids, and steam, and can be mounted horizontally or vertically.
Key Features:
- 8 in. nominal valve size with flange x flange connections
- ANSI flange class: Class 150
- Body material: 316 stainless steel
- Check mechanism: Swing
- Mechanism and body design: Inline wafer
- Flow design: Single
- Cracking pressure: 0.006 psi
- Flow rating: 838 gpm
- Maximum operating pressure: 275 psi
- maximum water pressure: 275 psi at 100 degrees F
- Operating temperature range: -450 degrees F to 1,000 degrees F
- Seal material: 316 stainless steel
- Seat material: Metal/Stainless Steel
- Spring material: 316 stainless steel
- Mounting orientation: Horizontal, Vertical
- Overall length/height: 11 in.
- Compliance: Meets multiple ASME, API, and MSS standards
- Standards: ASTM A351 CF8M
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.50
- Package Width: 11.50
- Package Height: 5.50
- Package Weight: 25.00
