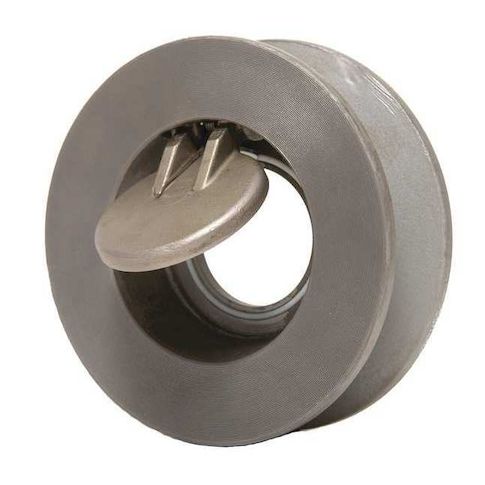

8" Flanged Stainless Steel Wafer Check Valve MPN:8SD15-SSVS-R

• CHAMPION 8SD15-SSVS-R is an 8 in flanged stainless steel wafer check valve for process piping. This inline wafer valve uses a swing check mechanism to permit flow in one direction and close to reduce reverse flow. It is rated for oil and water service, supports horizontal or vertical mounting, and has a cracking pressure of 0.162 psi.

  Key Features:

  • - Size: 8 in nominal valve size with 8 in connections on both sides
  • - Connection style: Flange x Flange, wafer end design, ANSI Flange Class 150
  • - Body material: 316 stainless steel
  • - Check mechanism: Swing design with 316 stainless steel mechanism and spring
  • - Seal and seat material: FKM/Viton
  • - Pressure rating: 275 psi at 100 degrees F maximum water pressure
  • 275 psi maximum operating pressure
  • - Temperature range: -40 degrees F minimum operating temperature to 400 degrees F maximum operating temperature
  • - Flow capacity: 1,270 gpm
  • - Body design: Inline wafer
  • - Standards: Meets applicable ASME, API, and ASTM standards
  • - Counterweight: None
  • - Overall dimensions: 11 in overall height, 7.47 in overall length, 2 7/8 in width
