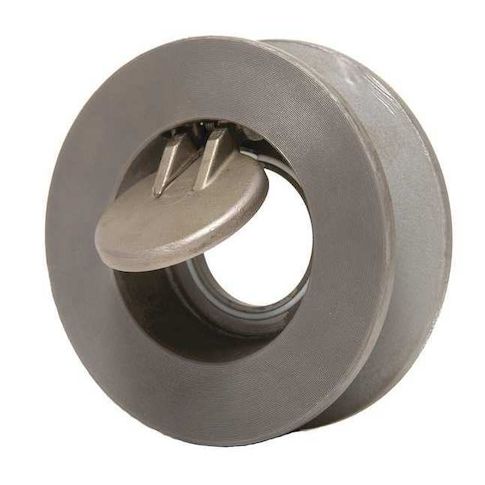

5" Flanged Stainless Steel Wafer Check Valve MPN:5SD15-SSVS-R

• CHAMPION 5SD15-SSVS-R is a 5 in flanged stainless steel wafer check valve for process piping. It features a single-flow inline wafer design with a swing check mechanism for one-direction flow and reverse-flow check applications. The valve is rated for oil and water service, can be mounted horizontally or vertically, and has a 0.2 psi cracking pressure for low-pressure opening.

  Key Features:

  • 5 in nominal valve size with 5 in connections on both sides.
  • Flange x flange connection configuration with wafer-style ends and ANSI Class 150 flange class.
  • 316 stainless steel body, check mechanism, and spring.
  • FKM/Viton seal and seat materials.
  • Maximum operating pressure: 275 psi
  • maximum water pressure: 275 psi at 100 degrees F.
  • Operating temperature range: -40 degrees F to 400 degrees F.
  • Flow capacity: 430 gpm.
  • Inline body style with single-flow design and standard silent check configuration.
  • Overall length: 5.5 in
  • overall height: 7 3/4 in
  • width: 2 1/2 in.
  • Meets multiple ASME, API, and ASTM standards.
