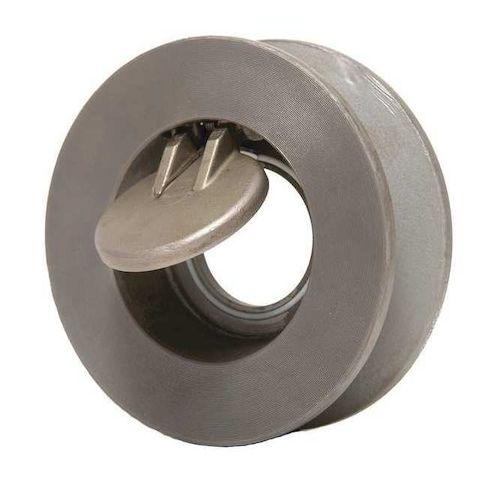

10" Flanged Stainless Steel Wafer Check Valve MPN:10SD15-SSBS-R
The Champion 10in Flanged Stainless Steel Wafer Check Valve is a reliable and durable solution for various industrial applications. Designed for inline wafer installation, this valve allows for easy installation and maintenance in horizontal or vertical piping configurations. Its stainless steel body ensures resistance to corrosion and high temperatures, while the Buna-N seal and spring provide a tight shut-off and long-lasting performance. Suitable for water and steam applications, this valve is ideal for use in power plants, chemical processing, and other industries where high pressure and temperature are present. It also meets or exceeds industry standards for performance and safety.
Top product features:
- 10in Flanged Stainless Steel Wafer Check Valve has a single flow design to allow for efficient fluid flow
- The valve body is made of stainless steel for durability and resistance to corrosion
- The valve is designed for inline wafer mounting, allowing for easy installation and minimal space requirements
Top product applications:
- Industrial water treatment systems
- Steam trap applications
- High-pressure chemical processing
The CHAMPION 10SD15-SSBS-R is a 10 in. inline wafer check valve with flanged end connections for process piping handling oil and water. It uses a single-flow swing check mechanism that allows forward flow and closes in response to reverse-flow conditions. The valve has a 316 stainless steel body and internal components, a cracking pressure of 0.23 psi, and can be mounted horizontally or vertically.
Key Features:
- Nominal valve size: 10 in. with 10 in. connections on both sides
- Connection style: flange x flange, wafer type
- ANSI flange class: Class 150
- Body material: 316 stainless steel
- material of construction: stainless steel
- Check mechanism: swing
- body design: inline wafer
- flow design: single
- Media: oil, water
- Seal material: Buna-N
- seat material: Buna-N
- Spring material: 316 stainless steel
- check mechanism material: 316 stainless steel
- Cracking pressure: 0.23 psi
- Maximum operating pressure: 275 psi
- maximum water pressure: 275 psi at 100 degrees F
- Operating temperature range: -70 degrees F to 250 degrees F
- Flow rating: 2,350 gpm
- Mounting orientation: horizontal, vertical
- Compliance: multiple ASME, API, and ASTM standards
- Overall length: 9.56 in.
- overall height: 13 3/8 in.
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 14.00
- Package Height: 6.00
- Package Weight: 82.00
