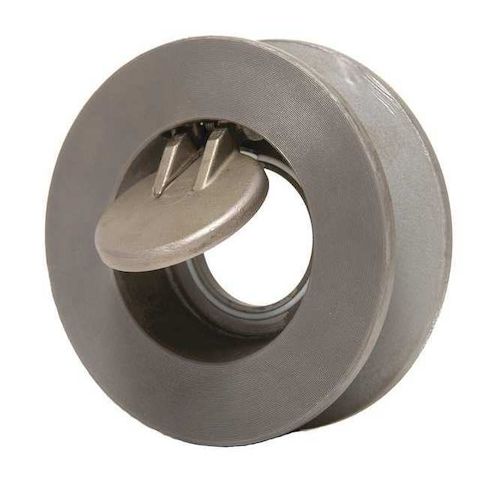

12" Flanged Carbon Steel Wafer Check Valve MPN:12SD15-CSBS-R
The Champion 12in Flanged Carbon Steel Wafer Check Valve is a reliable and efficient solution for various industrial applications. Designed for inline use, this valve features a single flow design and is constructed from durable carbon steel with a flange x flange connection type. Suitable for horizontal and vertical mounting, it can withstand high water pressure of up to 285 psi at 100°F and temperatures up to 250°F. Ideal for use in water treatment, chemical processing, and HVAC systems, this valve offers long-lasting performance and requires minimal maintenance. Its compact design makes it easy to install and integrate into existing systems.
Top product features:
- 12in Flanged Carbon Steel Wafer Check Valve allows for inline installation and operation.
- The valve is designed for horizontal and vertical mounting orientations.
- The valve is capable of withstanding water pressures up to 285 psi at 100 Degrees F.
Top product applications:
- Oil and Gas Industry
- Chemical Processing Plants
- Power Generation Facilities
The CHAMPION 12SD15-CSBS-R is a 12 in. inline wafer check valve with a flanged connection design for process piping systems handling oil and water. It uses a swing check mechanism and is configured for one-way flow and reverse-flow restriction. The valve features a carbon steel body, Buna-N seat and seal, and 316 stainless steel internal components. It is specified with a 0.241 psi cracking pressure and is compatible with horizontal or vertical mounting orientation.
Key Features:
- Valve type: Inline wafer check valve with swing mechanism
- Size: 12 in. nominal valve size with 12 in. connections on both sides
- Connection style: Flange x Flange, wafer body design, ANSI Flange Class 150
- Body material: Carbon steel
- Internal component material: 316 stainless steel
- Spring material: 316 stainless steel
- Seat and seal material: Buna-N
- Cracking pressure: 0.241 psi
- Flow rating: 3,850 gpm
- Maximum water pressure: 285 psi at 100 degrees F
- Operating temperature range: -70 degrees F to 250 degrees F
- Maximum temperature listed: 800 degrees F
- Mounting orientation: Horizontal or vertical
- Standards and compliance: Meets multiple ASME, API, and ASTM standards
- Counterweight: No
- Overall length: 11.63 in.
- overall height: 16 1/8 in.
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 16.00
- Package Height: 8.00
- Package Weight: 124.00
