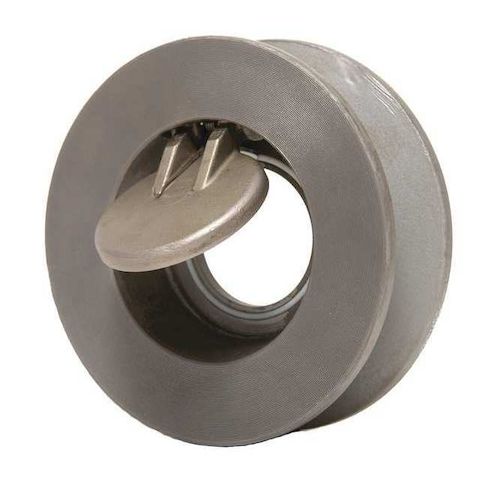

8" Flanged Carbon Steel Wafer Check Valve MPN:8SD15-CSBS-R
The 8in Flanged Carbon Steel Wafer Check Valve from Champion is a reliable and efficient solution for various industrial applications. Suitable for use in horizontal or vertical mounting orientations, this valve ensures smooth flow control and prevents backflow in pipelines. Its carbon steel body and 316 stainless steel spring guarantee durability and resistance to corrosion. Ideal for use in water and steam applications, this valve is also suitable for use in chemical processing, oil and gas, and power generation industries. Its compact design and easy installation make it a popular choice among engineers and technicians.
Top product features:
- The valve has a single flow design, allowing for unidirectional flow and preventing backflow.
- The valve body is made of carbon steel, providing durability and resistance to corrosion.
- The valve is designed as a wafer-style inline check valve, allowing for easy installation and maintenance.
Top product applications:
- Industrial water treatment systems
- Pulp and paper mill processes
- Steam power plant applications
CHAMPION 8SD15-CSBS-R is an 8 in flanged wafer check valve for process piping systems handling oil and water. This inline, single-flow valve uses a swing check mechanism to allow forward flow and close to limit reverse flow. It features a carbon steel body, Buna-N seat and seal, and 316 stainless steel internal components. Specifications include a 0.162 psi cracking pressure and horizontal or vertical mounting orientation.
Key Features:
- 8 in nominal valve size with 8 in connections on both sides
- Connection type: Flange x Flange
- wafer end style
- Body material: Carbon steel
- Check mechanism: Swing
- Mechanism and body design: Inline wafer
- flow design: Single
- For media: Oil, Water
- Cracking pressure: 0.162 psi
- Maximum operating pressure: 285 psi
- maximum water pressure: 285 psi at 100 Degrees F
- Operating temperature range: -70 Degrees F to 250 Degrees F
- Seat material: Buna-N
- seal material: Buna-N
- Spring material: 316 stainless steel
- check mechanism material: 316 stainless steel
- Mounting orientation: Horizontal, Vertical
- ANSI flange class: Class 150
- Meets multiple ASME, API, and ASTM standards
- Overall length: 7.47 in
- overall height: 11 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.50
- Package Width: 11.50
- Package Height: 5.50
- Package Weight: 49.00
