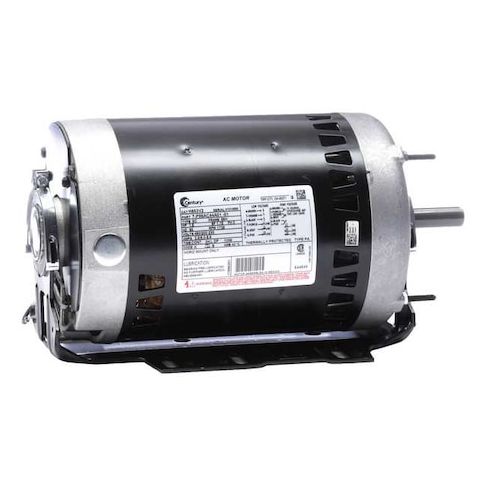

3-Phase Direct Drive Blower Motor, 1 1/2 HP, 56H Frame, 200-230/460V AC Voltage, No. of Speeds: 1 MPN:H853V2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G903457076
3-Phase Direct Drive Blower Motor, 1 1/2 HP, 56H Frame, 200-230/460V AC Voltage, No. of Speeds: 1
This 3-Phase Direct Drive Blower Motor is a high-performance solution for industrial and commercial applications. With a 1.5 HP rating and 1,725 RPM, it provides efficient airflow and reliable operation. Suitable for use in a variety of settings, including HVAC systems, industrial ventilation, and material handling, this motor offers continuous duty cycle and a maximum ambient temperature of 40 degrees C. Its open drip-proof design and cradle base mounting make it easy to integrate into existing systems. With a lead time of just one day, it's an ideal choice for businesses that require quick turnaround on their projects.
Top product features:
- Three-Phase Direct Drive design provides a direct and efficient way to power the blower.
- The motor has a 1 1/2 HP rating, which indicates a sufficient power output for various applications.
- The motor is designed with a 56H frame, which implies a compact and space-efficient design.
Top product applications:
- Air Handling Units
- HVAC Systems
- Industrial Ventilation Systems
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 2.8/5.0-5.6 A Full Load Amps, 56H Frame, Output Watts 1120 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Yes, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 12.50
- Package Height: 10.30
- Package Weight: 31.20
Product info last updated on February 25, 2026 5:12pm UTC
Category: Motors
