Condenser Fan Motor, 1/4 hp MPN:FE1026SU

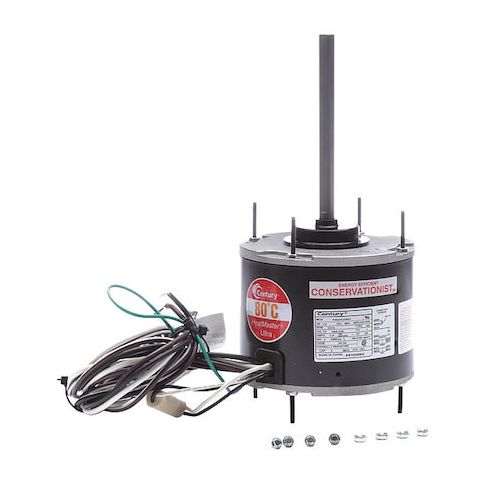

Condenser Fan Motor, 1/4 hp
This 1/4 hp condenser fan motor from Century is a reliable and efficient solution for a wide range of applications. Suitable for use in air conditioning and refrigeration systems, it operates at 1,075 RPM and 190 watts, making it an ideal choice for condenser fans, air handlers, and other HVAC equipment. With a permanent split capacitor design and totally enclosed air-over enclosure, this motor provides excellent protection against dust and moisture. Its compact size and lightweight design make it easy to install and maintain, ensuring a long and trouble-free service life. Perfect for commercial and residential use.
Top product features:
- Permanent Split Capacitor motor design
- Totally Enclosed Air-Over motor enclosure design
- Auto thermal protection
Top product applications:
- Air Conditioner
- HVAC Systems
- Packaged Units
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.9 A Full Load Amps, 48 Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 80 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.80
- Package Width: 6.80
- Package Height: 6.90
- Package Weight: 14.40
Product info last updated on February 7, 2026 1:54pm UTC
Category: Motors
