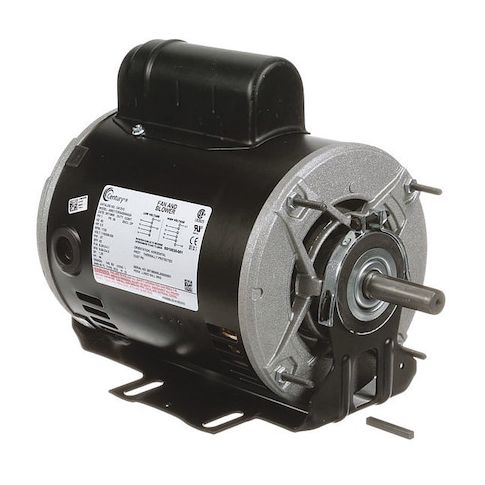

Capacitor-Start Belt Drive Motor, 1/2 HP, 56 Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM MPN:C412V2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7446632
Capacitor-Start Belt Drive Motor, 1/2 HP, 56 Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM
This 1/2 HP, 56 frame capacitor-start belt drive motor is ideal for use in fans and blowers, offering efficient and reliable operation. With a nameplate RPM of 1,725, it provides consistent performance and is suitable for use in a variety of applications, including residential and commercial settings. The motor's open drip-proof design and cradle base mounting make it easy to install and maintain. Its continuous duty cycle and auto thermal protection ensure reliable operation, even in demanding environments. With a lead time of just one day, this motor is perfect for projects requiring quick turnaround.
Top product features:
- Capacitor-start design for efficient motor operation
- Single-phase operation for simple installation and control
- Open drip-proof enclosure design for safe and reliable operation in various environments
Top product applications:
- HVAC Fans
- Exhaust Fans
- Pumps
Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 8.2/4.0-4.1 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.30
- Package Width: 8.40
- Package Height: 11.00
- Package Weight: 24.98
Product info last updated on February 21, 2026 3:42pm UTC
Category: Motors
