Split-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 115/230V AC Voltage, 1, 725 Nameplate RPM MPN:F680V1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7446039

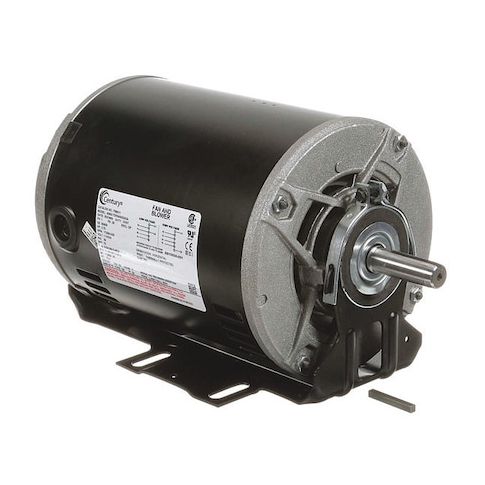

Split-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 115/230V AC Voltage, 1, 725 Nameplate RPM
This 3/4 HP Split-Phase Belt Drive Motor from Century is a reliable and efficient solution for various applications. Suitable for use in fan and blower systems, it provides a consistent 1,725 RPM, making it ideal for applications requiring continuous operation. With a robust open drip-proof design and cradle base mounting, this motor can withstand demanding environments. Its auto thermal protection and Class B insulation ensure safe and reliable operation. Perfect for use in commercial and industrial settings, this motor is a great choice for fans, blowers, and other equipment requiring a reliable and efficient power source.
Top product features:
- Split-Phase Belt Drive Motor design allows for efficient and reliable operation.
- The motor has a 1.25 Service Factor, enabling it to handle increased loads without overheating.
- The motor is designed with Open Drip Proof Enclosure, providing protection against dust and water ingress.
Top product applications:
- Air Conditioning Units
- HVAC Systems
- Industrial Fans
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, 10.4/5.2 A Full Load Amps, 56 Frame, 60/50 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 9.10
- Package Height: 8.50
- Package Weight: 30.55
Product info last updated on March 14, 2026 9:48am UTC
Category: Motors
