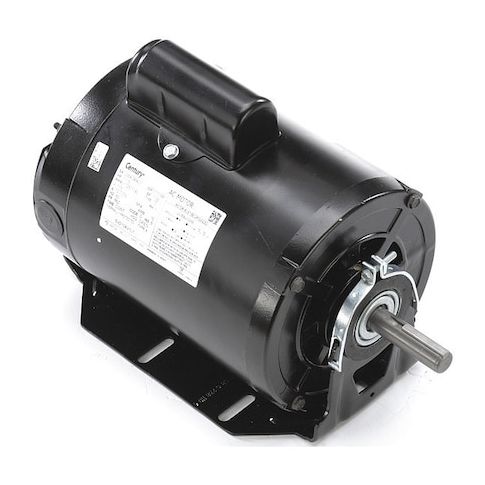

Evaporative Cooler Motor, 1 hp MPN:SV2104V1L1
Evaporative Cooler Motor, 1 hp
This 1 hp single-phase evaporative cooler motor from Century is designed for reliable operation in a variety of applications. With a capacitor-start motor design and continuous duty cycle, it can handle demanding tasks in environments up to 40°C. The motor is suitable for use in evaporative coolers, providing a cost-effective and energy-efficient cooling solution. Its compact size and open design make it easy to install and maintain. Ideal for residential and commercial use, this motor is a reliable choice for evaporative cooler systems.
Top product features:
- Single Phase Design
- Capacitor-Start Motor Design
- Continuous Duty Cycle
Top product applications:
- Residential evaporative cooling systems
- Commercial evaporative cooling systems
- Industrial process cooling systems
Evaporative Cooler Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 12.7/7.6 A Full Load Amps, 56Z Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.00
- Package Width: 11.00
- Package Height: 11.00
- Package Weight: 36.00
Product info last updated on February 16, 2026 12:06am UTC
Category: Motors
