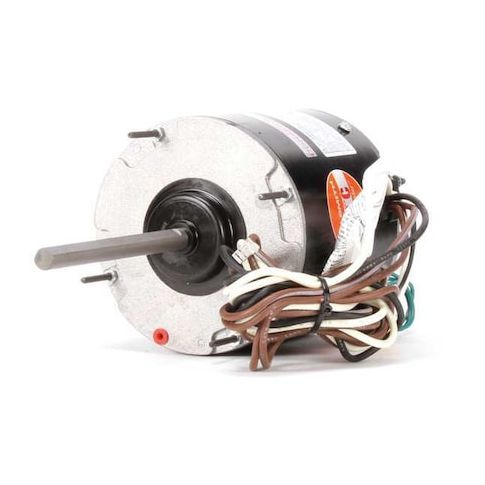

Motor, PSC, 1/2 HP, 1075, 208-230V, 48, TEAO MPN:ORM5459BF
Motor, PSC, 1/2 HP, 1075, 208-230V, 48, TEAO
This 1/2 HP, 1075 RPM motor is a reliable and efficient solution for various applications. Suitable for use in condenser fan systems, it provides continuous operation and handles a maximum ambient temperature of 70°C. With a totally enclosed air-over design and a service factor of 1, this motor ensures quiet and reliable operation. Its compact size and lightweight design make it easy to integrate into existing systems, while its 370-watt output provides sufficient power for a range of applications, including HVAC, industrial, and commercial use. Ideal for continuous duty cycles, this motor is a versatile and dependable choice.
Top product features:
- It has a permanent split capacitor motor design.
- It operates at a maximum ambient temperature of 70 degrees C.
- It has a totally enclosed air-over motor enclosure design.
Top product applications:
- Air Conditioning Systems
- Conveyor Systems
- Pumps and Fans
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp, 1/5 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 3.6 A Full Load Amps, 48 Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.60
- Package Width: 7.00
- Package Height: 7.20
- Package Weight: 17.20
