Condenser Fan Motor, 1 hp MPN:H1050AV1

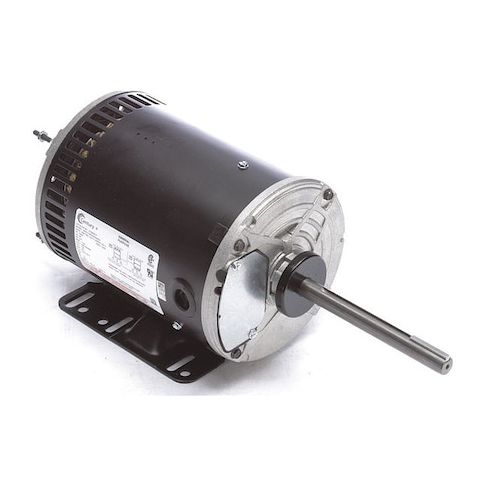

Condenser Fan Motor, 1 hp
This 1 hp condenser fan motor from Century is designed for three-phase applications, delivering 750 watts of power at 1,140 RPM. Suitable for use at 200-230/460V AC, it provides efficient cooling in a variety of settings. Ideal for commercial and industrial applications, this motor features a rigid base mounting type and open air over enclosure design. With a continuous duty cycle and maximum ambient temperature of 70 degrees C, it offers reliable performance in demanding environments. Its compact size and lightweight design make it easy to integrate into existing systems, providing a cost-effective solution for condenser fan applications.
Top product features:
- Three-phase motor design
- Usable at 208V and 200V
- Continuous duty cycle
Top product applications:
- Air Conditioning Systems
- HVAC Units
- Commercial Refrigeration Units
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 3.8-4.0/2.0 A Full Load Amps, 56HZ Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 8.20
- Package Height: 8.50
- Package Weight: 27.50
Product info last updated on February 21, 2026 1:48pm UTC
Category: Motors
