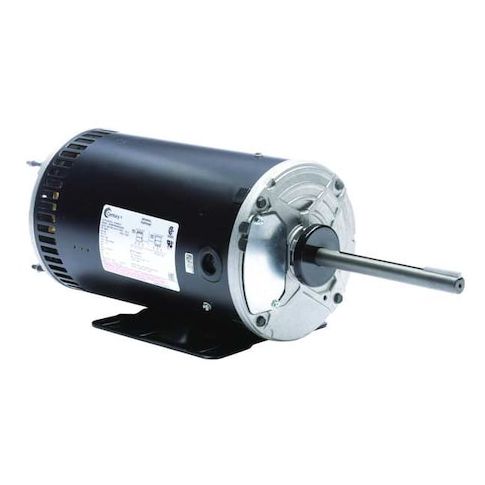

Condenser Fan Motor, 1 1/2 hp MPN:H1054AV1
Condenser Fan Motor, 1 1/2 hp
This 1 1/2 hp condenser fan motor from Century is a reliable and efficient solution for a variety of applications, including commercial and industrial HVAC systems. With a continuous duty cycle and a maximum ambient temperature of 70°C, it can handle demanding environments with ease. Its open air over design and rigid base mounting type make it easy to install and integrate into existing systems. The motor's 850 RPM and 1100 W output make it suitable for applications requiring moderate airflow, such as rooftop units and package units. Its three-phase design and 230/460V AC voltage capabilities make it a versatile choice.
Top product features:
- Three Phase Design
- 1 1/2 hp Power Output
- Continuous Duty Cycle
Top product applications:
- HVAC Systems
- Air Conditioning Units
- Commercial Refrigeration Systems
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 230/460V AC, 6.6/3.3 A Full Load Amps, 56HZ Frame, Output Watts 1100 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.00
- Package Width: 12.40
- Package Height: 12.50
- Package Weight: 48.00
Product info last updated on February 3, 2026 10:25pm UTC
Category: Motors
