Condenser Fan Motor, 1 hp MPN:H1053AV1

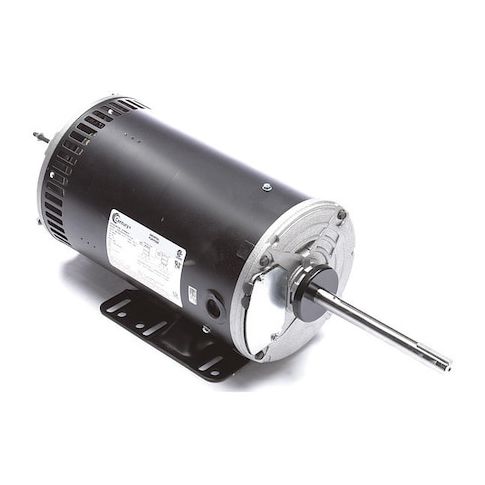

Condenser Fan Motor, 1 hp
This 1 hp condenser fan motor from Century is a reliable and efficient solution for various applications, including commercial and industrial HVAC systems. Designed for continuous operation, it features a robust motor with a service factor of 1 and thermal protection for optimal performance. The motor can operate at 208-230/460V AC and is suitable for use in temperatures up to 70 degrees C. Its compact design and rigid base mounting make it easy to integrate into existing systems, providing a cost-effective solution for maintaining comfortable indoor air quality and efficient cooling.
Top product features:
- Three-phase operation
- Continuous duty cycle
- 56HZ frame design
Top product applications:
- Air Conditioning Systems
- HVAC Units
- Commercial Refrigeration Systems
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.1-5.4/2.7 A Full Load Amps, 56HZ Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 10.00
- Package Height: 9.60
- Package Weight: 46.70
Product info last updated on March 21, 2026 6:57pm UTC
Category: Motors
