Condenser Fan Motor, 3/4 hp MPN:FC3076F

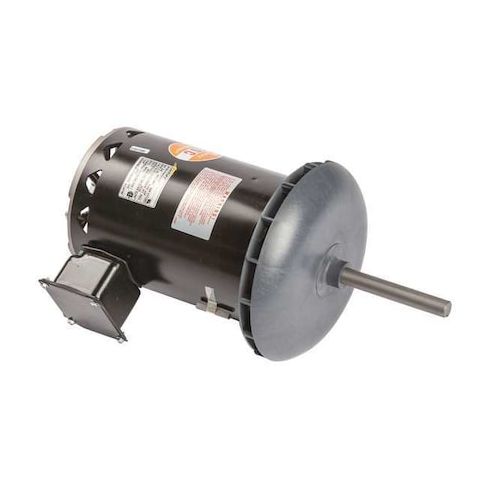

Condenser Fan Motor, 3/4 hp
This 3/4 hp condenser fan motor from Century is a reliable and efficient solution for a wide range of applications, including HVAC systems, industrial processes, and commercial equipment. Its three-phase design and continuous duty cycle make it well-suited for high-demand use, while its auto thermal protection and Class F insulation ensure safe and reliable operation. With a maximum ambient temperature of 70°C and a usable voltage range of 200-230/460V AC, this motor can be used in a variety of settings and is a cost-effective option for applications requiring a high level of performance and efficiency.
Top product features:
- Three-phase operation
- Three-speed operation
- Continuous duty cycle
Top product applications:
- HVAC systems
- Heat pumps
- Packaged air conditioning units
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 4.0/2.0 A Full Load Amps, 48Y Frame, Output Watts 560 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.80
- Package Width: 9.40
- Package Height: 18.50
- Package Weight: 24.72
Product info last updated on April 6, 2026 10:50am UTC
Category: Motors
