Condenser Fan Motor, 1 HP, 1140 rpm, 60 Hz MPN:FC3106F

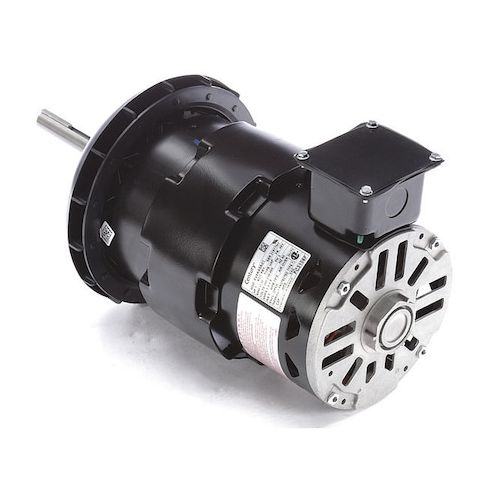

Condenser Fan Motor, 1 HP, 1140 rpm, 60 Hz
This 1 HP condenser fan motor from Century is designed for reliable operation in a variety of applications, including HVAC systems, condensers, and cooling units. Its three-phase design and high efficiency make it suitable for use in commercial and industrial settings. With a continuous duty cycle and maximum ambient temperature of 70 degrees C, this motor can handle demanding applications. Its compact design and open air over enclosure make it easy to install and maintain. Whether you're looking to upgrade your existing system or build a new one, this motor is a reliable choice for your condenser fan needs.
Top product features:
- Three-phase operation
- Continuous duty cycle
- Three-speed operation is not listed, but the motor can be used at 208V, 200V, and 460V AC
Top product applications:
- HVAC systems for residential and commercial buildings
- Industrial process cooling systems
- Commercial refrigeration units
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 5.6/2.8 A Full Load Amps, 48Y Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 11.40
- Package Height: 10.70
- Package Weight: 31.35
Product info last updated on February 12, 2026 6:45pm UTC
Category: Motors
