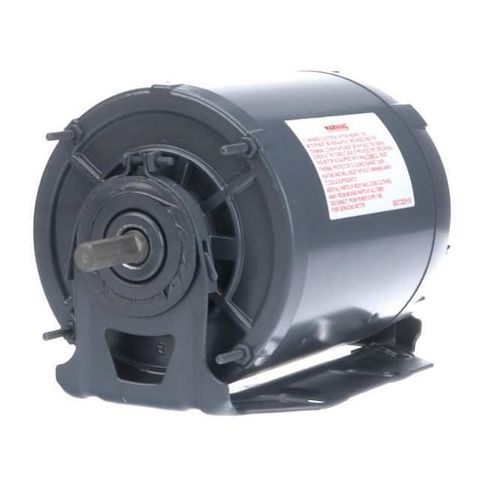

Motor, Sp Ph, 1/3 HP, 1725, 115/208-230V, 48Y MPN:ARB2034L6
Motor, Sp Ph, 1/3 HP, 1725, 115/208-230V, 48Y
This 1/3 HP single-phase motor from Century is designed for a wide range of applications, including fans and blowers. With a nameplate RPM of 1725 and a voltage rating of 115/208-230V AC, it provides efficient and reliable operation. The motor features a split-phase design, auto thermal protection, and a totally enclosed air-over enclosure, making it suitable for continuous duty cycles in temperatures up to 40°C. Its compact size and lightweight design make it easy to install and maintain. Ideal for use in residential, commercial, and industrial settings, this motor is a reliable choice for a variety of fan and blower applications.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure Design
- Auto Thermal Protection
- Continuous Duty Cycle Capability
Top product applications:
- HVAC systems for residential or light commercial use
- Industrial ventilation systems for factories or warehouses
- Exhaust fans for garages or workshops
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 4.9/2.3/2.5 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.20
- Package Width: 7.30
- Package Height: 8.10
- Package Weight: 18.40
