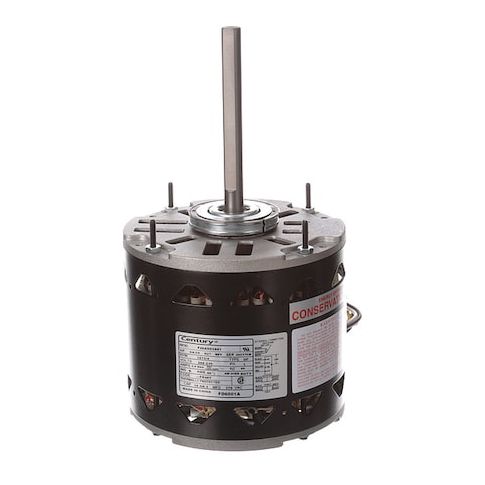

Motor, PSC, 3/4 HP, 1075, 208-230V, 48Y, Open MPN:FD6001A
Motor, PSC, 3/4 HP, 1075, 208-230V, 48Y, Open
This 3/4 HP PSC motor from Century is a reliable and efficient solution for various applications requiring a single-phase motor. With a nameplate RPM of 1,075 and 4 speed options, it can be used in a range of settings, including fans and blowers. Its permanent split capacitor design ensures smooth and quiet operation, while its open air over motor enclosure allows for easy maintenance. Suitable for use at 208-230V, this motor offers a maximum ambient temperature of 40°C and is designed for use in 60 Hz environments. Perfect for industrial and commercial applications where reliability and efficiency are key.
Top product features:
- Permanent Split Capacitor motor design
- Has 4 speeds
- Operates at 1,075 RPM
Top product applications:
- HVAC Systems
- Air Handling Units
- Packaged Rooftop Units
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/5 hp, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 208-230V AC, 4.0 A Full Load Amps, 48 Frame, Output Watts 560W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.80
- Package Width: 6.60
- Package Height: 6.60
- Package Weight: 15.60
Product info last updated on February 28, 2026 12:42pm UTC
Category: Motors
