MODEL-RFHP-48FR MPN:FE6004F
MODEL-RFHP-48FR

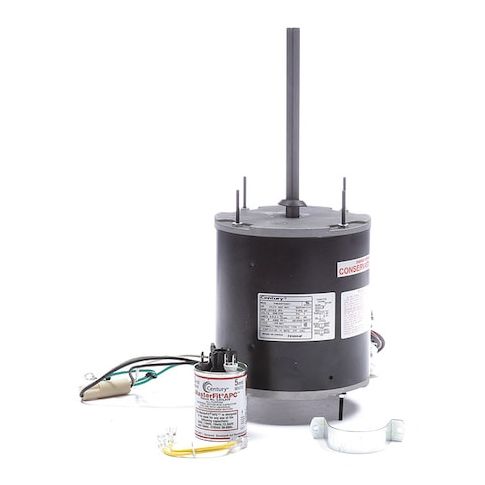

The Century MODEL-RFHP-48FR condenser fan motor is a reliable and efficient solution for various applications. Designed for use in single-phase systems, this 1/3-3/4 hp motor operates at 1,075 RPM and features a permanent split capacitor design. Suitable for use at 208-230V AC, it provides 560W of output power and is usable at 208V. With a motor service factor of 1 and auto thermal protection, this motor ensures maximum performance and reliability. Ideal for use in air-cooled condensers, air handling units, and other HVAC applications, the MODEL-RFHP-48FR motor offers a cost-effective and efficient solution for a wide range of commercial and industrial settings.
Top product features:
- Permanent Split Capacitor motor design
- Totally Enclosed Air-Over motor enclosure design
- Auto motor thermal protection
Top product applications:
- HVAC systems
- Commercial refrigeration units
- Industrial air handling equipment
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 2, Voltage 208-230V AC, 2.4/5.6 A Full Load Amps, 48 Frame, Output Watts 560W, 60 Hz Hz, Usable @ 208V Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Hole, Stud, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 21.00
Product info last updated on February 5, 2026 11:57am UTC
Category: Motors
