1/2 HP, 1075 RPM, 115v, 3 speed, 8.0 amps MPN:FML1056
1/2 HP, 1075 RPM, 115v, 3 speed, 8.0 amps

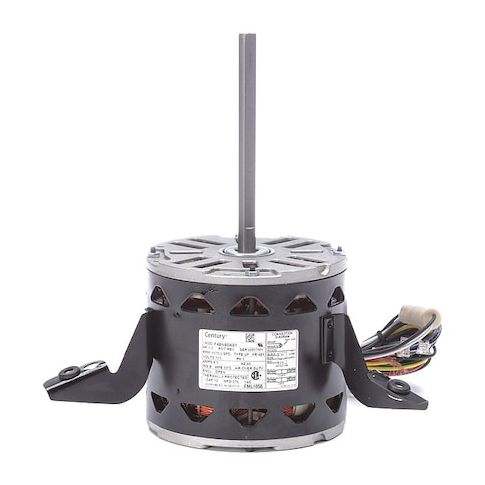

This 1/2 HP, 3-speed condenser fan motor from Century is designed for reliable performance in a variety of applications, including air conditioning and heating systems. With a permanent split capacitor motor design and 115V AC operation, it provides efficient cooling and ventilation in residential and commercial settings. The motor's 3 speeds allow for flexible operation and customization, while its 8.5 amp full load rating ensures stable performance. Suitable for horizontal mounting, this motor is a versatile solution for contractors and builders looking to upgrade or install new systems. Its compact design and durable construction make it an ideal choice for a range of applications.
Top product features:
- It operates at three different speeds.
- It is designed to operate in temperatures up to 50 degrees C.
- It has a permanent split capacitor motor design.
Top product applications:
- Condenser Fan Motor for residential air conditioning units
- Commercial air handling systems
- Packaged HVAC units
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 115V AC, 8.5 A Full Load Amps, 48Y Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Lug, Motor Frame Material Steel, Motor Mounting Position Horizontal
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 11.50
- Package Height: 10.70
- Package Weight: 17.75
Product info last updated on March 25, 2026 10:39pm UTC
Category: Motors
