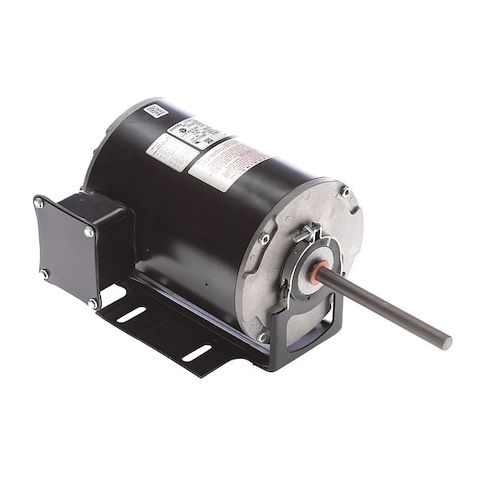

MOTOR 1/2 HP 1140 RPM 208-230/ MPN:FB3056
MOTOR 1/2 HP 1140 RPM 208-230/
This 1/2 HP motor from Century is designed for a wide range of applications, including industrial and commercial use. With a single-phase design and three-phase motor configuration, it offers flexibility and versatility. The motor is rated for 1140 RPM and 2.5/1.25 amps at full load, making it suitable for applications requiring moderate power. Its open-air design and cradle base mounting type provide easy installation and maintenance. The motor is also equipped with thermal protection and a service factor of 1, ensuring reliable operation. It's perfect for use in factories, warehouses, and other industrial settings where efficiency and reliability are crucial.
Top product features:
- Operates at 1140 RPM
- Has a single phase motor design
- Has a motor shaft that rotates clockwise and counterclockwise
Top product applications:
- Pumps
- Fans
- Conveyors
MOTOR 1/2 HP 1140 RPM 208-230/, Single Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 2.5/1.25 A Full Load Amps, 56Y Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Cradle Base, Shaft Length 5 11/16 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 20.95
Product info last updated on February 26, 2026 12:51pm UTC
Category: Motors
