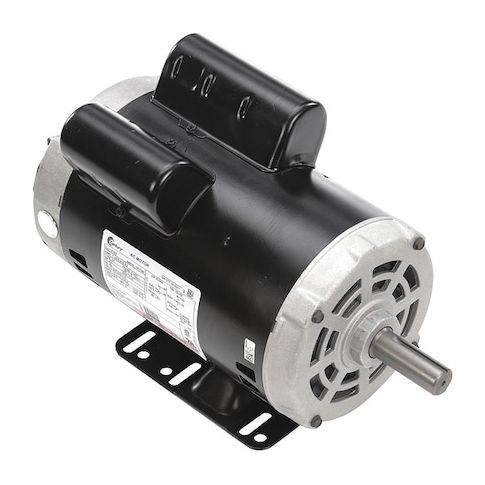

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 145T Frame, 208-230/115V AC Voltage MPN:V102
Capacitor-Start/Run General Purpose Motor, 2 hp HP, 145T Frame, 208-230/115V AC Voltage
This 2 hp single-phase motor is a reliable and efficient choice for a wide range of applications, including industrial and commercial settings. Its capacitor-start/run design provides a smooth and consistent operation, while its open drip-proof enclosure protects against dust and water. Suitable for continuous duty cycles, this motor can withstand high temperatures and is perfect for use in environments up to 40°C. Its compact size and rigid base design make it easy to install and integrate into existing systems. Ideal for applications such as pumps, conveyors, and fans, this motor provides a cost-effective solution with minimal maintenance requirements.
Top product features:
- Capacitor-start/run design allows for efficient starting and running of the motor
- Single-phase motor design provides a cost-effective solution for various applications
- Open drip-proof enclosure design protects against dust and water ingress
Top product applications:
- Pump applications
- Conveyor systems
- Fans and blowers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 208-230/115V AC, Full Load Amps 20.4/10.2-10.0 A, 145T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CCWSE, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.00
- Package Width: 11.30
- Package Height: 11.60
- Package Weight: 43.51
Product info last updated on February 8, 2026 2:27pm UTC
Category: Motors
