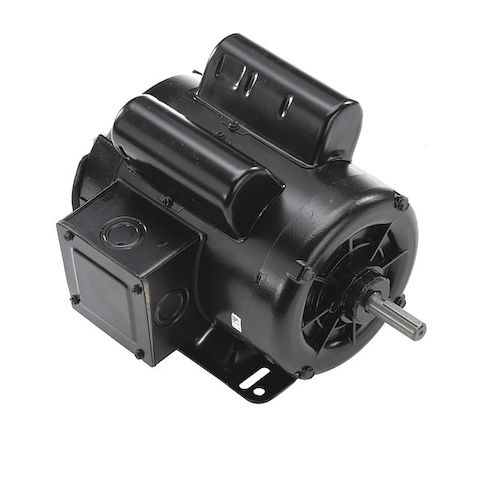

Farm Duty Motor, Capacitor-Start/Run, 1 to 0.29 HP, 230V AC, 1, 725/1, 140 Nameplate RPM, L56H Frame MPN:C597
Farm Duty Motor, Capacitor-Start/Run, 1 to 0.29 HP, 230V AC, 1, 725/1, 140 Nameplate RPM, L56H Frame
This rugged Farm Duty Motor is designed to withstand the demands of agricultural environments, featuring a durable totally enclosed air-over design and a robust rigid base mounting system. With a capacitor-start/run design and a 1-0.29 HP range, it provides reliable power for a variety of applications, including irrigation systems, grain elevators, and farm equipment. Its continuous duty cycle and high service factor make it ideal for demanding tasks, while its low amp draw and manual thermal protection ensure efficient operation and reduced maintenance costs. Suitable for use in 230V AC environments, this motor is a reliable choice for farms and agricultural operations.
Top product features:
- Operates at 1,725/1,140 Nameplate RPM
- Totally Enclosed Air-Over Motor Enclosure Design
- Manual Motor Thermal Protection
Top product applications:
- Pumps for irrigation systems
- Well pumps for rural homes
- Centrifugal pumps for industrial applications
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 230V AC, Full Load Amps 5.3/3.0 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 35.00
Product info last updated on March 17, 2026 4:26pm UTC
Category: Motors
