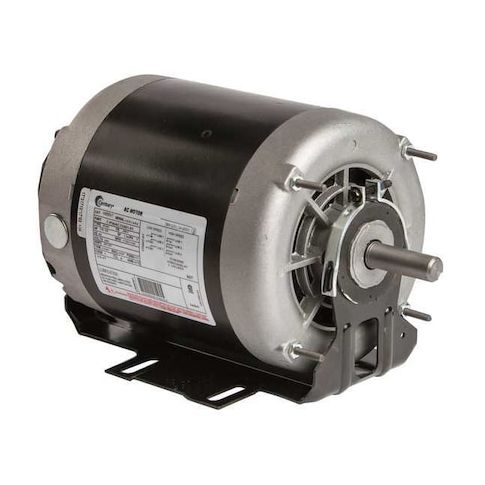

3-Phase Belt Drive Motor, 1/3, 3/4 HP, 56 Frame, 200-230V AC Voltage, 1, 725/1, 140 Nameplate RPM MPN:H657V1
3-Phase Belt Drive Motor, 1/3, 3/4 HP, 56 Frame, 200-230V AC Voltage, 1, 725/1, 140 Nameplate RPM
This 3-Phase Belt Drive Motor from Century is a reliable and efficient solution for various applications, including fans and blowers. With a 1/3 or 3/4 HP rating, it provides continuous operation at 200-230V AC voltage, suitable for use in a variety of environments. Its 56 frame design and open drip-proof enclosure make it easy to integrate into existing systems. The motor's high service factor and thermal protection ensure long-term performance and durability. Ideal for use in commercial and industrial settings, this motor is perfect for applications such as ventilation systems, air handling units, and HVAC systems.
Top product features:
- Three-Phase Belt Drive Motor Design
- Has two speed options: 1,725/1,140 Nameplate RPM
- Operates on 200-230V AC Voltage
Top product applications:
- Air conditioning and heating systems
- Industrial ventilation systems
- Commercial laundry equipment
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1/3 hp, 3/4 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 200-230V AC, 2.5-2.6/1.5-1.6 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.00
- Package Width: 10.00
- Package Height: 10.00
- Package Weight: 24.00
Product info last updated on February 25, 2026 7:41pm UTC
Category: Motors
