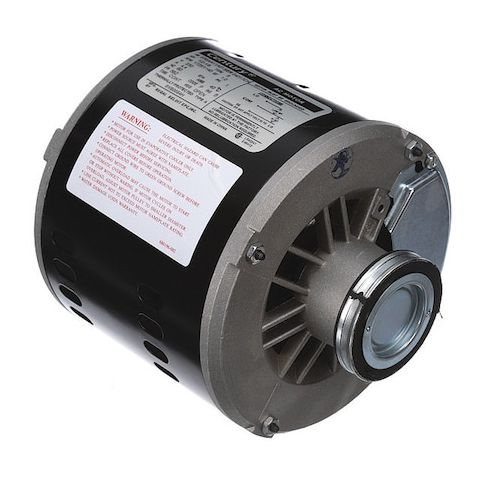

Evaporative Cooler Motor, 1/2 hp; 1/6 hp MPN:SVB2054HV1
Evaporative Cooler Motor, 1/2 hp; 1/6 hp
This Evaporative Cooler Motor from Century is a reliable and efficient solution for a variety of applications. Its 1/2 and 1/6 horsepower options provide flexibility for different cooling needs, while its single-phase design and split-phase motor ensure smooth operation. Suitable for use in dry climates, this motor is ideal for evaporative cooling systems, such as swamp coolers and misting systems. Its compact design and open drip-proof enclosure make it easy to install and maintain. With a service factor of 1 and automatic thermal protection, this motor provides reliable performance in temperatures up to 40°C.
Top product features:
- Single Phase Design
- Split-Phase Motor Design
- Auto Thermal Protection
Top product applications:
- Evaporative cooler systems
- Industrial air circulation systems
- Commercial air handling systems
Evaporative Cooler Motor, Single Phase, Motor Design Split-Phase, 1/2 hp, 1/6 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 230V AC, 4.4/2.0 A Full Load Amps, 56Z Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Resilient Ring
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.70
- Package Width: 7.00
- Package Height: 7.20
- Package Weight: 16.90
Product info last updated on February 25, 2026 1:21pm UTC
Category: Motors
