1/12 to 1/8HP Condenser Fan Motor, 1075 rpm MPN:9722
1/12 to 1/8HP Condenser Fan Motor, 1075 rpm

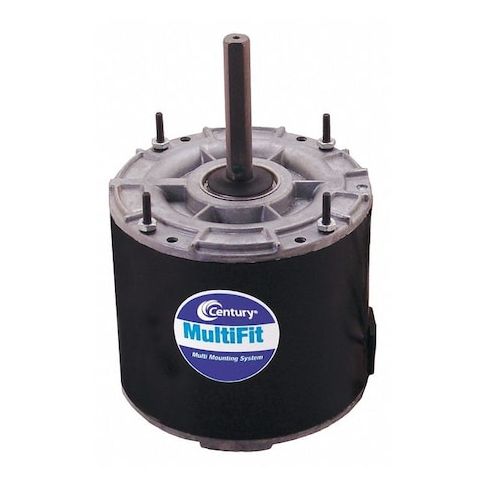

This 1/12 to 1/8 HP condenser fan motor from Century is designed for efficient cooling in a variety of applications. Suitable for use in air conditioning systems, it features a permanent split capacitor motor design and operates at 1075 RPM. The motor is single-phase and can be used with a 208-230V AC power supply. Its compact design and totally enclosed air-over enclosure make it ideal for use in tight spaces. The motor's continuous duty cycle and thermal protection ensure reliable operation in demanding environments, making it suitable for use in commercial and residential air conditioning systems.
Top product features:
- Permanent Split Capacitor motor design for efficient operation
- Totally Enclosed Air-Over motor enclosure for protection from environmental factors
- Continuous duty cycle capability for reliable operation in demanding applications
Top product applications:
- Air Conditioning Units
- Room Air Conditioners
- Window Air Conditioners
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/12 hp, 1/8 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 0.9 A Full Load Amps, 42 Frame, Output Watts 100 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 7.00
- Package Weight: 9.75
Product info last updated on March 10, 2026 4:05pm UTC
Category: Motors
