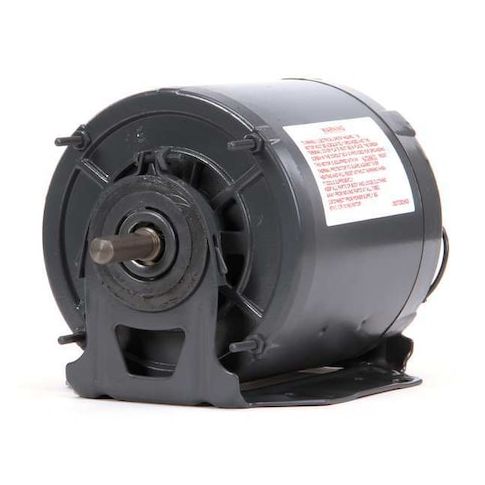

Motor, Sp Ph, 1/6 HP, 1725, 115/208-230V, 48Y MPN:ARB2014L
Motor, Sp Ph, 1/6 HP, 1725, 115/208-230V, 48Y
This 1/6 HP single-phase motor from Century is designed for a variety of applications, including fans and blower motors. With a nameplate RPM of 1725 and a voltage range of 115/208-230V, it provides efficient and reliable operation. The motor features a split-phase design, totally enclosed air-over enclosure, and automatic thermal protection. Its compact 48Y frame and low 125W output make it ideal for use in a range of settings, including residential and commercial environments. By providing continuous duty cycle and a maximum ambient temperature of 40°C, this motor is suitable for demanding applications and offers a reliable solution for fans and blower motors.
Top product features:
- Single Phase Design
- Split-Phase Motor Design
- Totally Enclosed Air-Over Motor Enclosure
Top product applications:
- Ventilation Systems
- HVAC Systems
- Industrial Fan Systems
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/6 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 2.8/1.4/1.4 A Full Load Amps, 48Y Frame, Output Watts 125 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 8.00
- Package Height: 9.20
- Package Weight: 14.17
