3-Phase General Purpose Pump Motor, 2 HP, 56J Frame, 230/460V AC Voltage, 3, 450 Nameplate RPM MPN:H706ES
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G300905408
3-Phase General Purpose Pump Motor, 2 HP, 56J Frame, 230/460V AC Voltage, 3, 450 Nameplate RPM

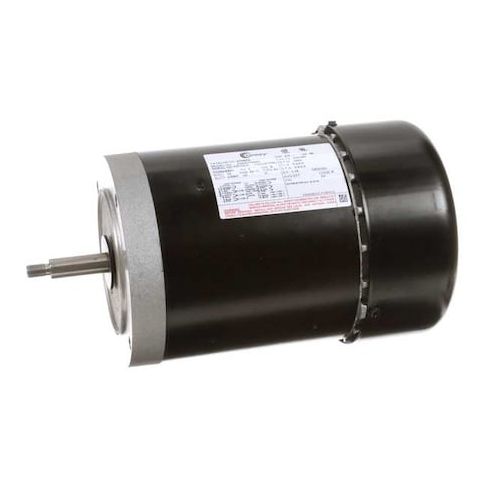

This 2 HP, 3-phase general purpose pump motor from Century is designed for continuous duty cycles in a wide range of applications, including industrial and commercial settings. Its robust construction and totally enclosed fan-cooled design ensure reliable operation and long lifespan. The motor's high efficiency and ball bearings provide smooth operation and reduced energy consumption. With its compact 56J frame and exterior conduit box location, this motor is ideal for use in tight spaces and can be easily integrated into existing systems. Suitable for general applications, it's a reliable choice for various industries and processes.
Top product features:
- Three-phase operation for increased power and efficiency
- Totally Enclosed Fan-Cooled design for improved cooling and reduced maintenance
- Ball bearings for smooth and quiet operation
Top product applications:
- General Application
- Continuous Duty Cycle
- Totally Enclosed Fan-Cooled Design
General Purpose Pump Motor, Bearing Protection Shaft Shields, Body Dia. 6.6 in, Bolt Circle Dia. 5 7/8 in, Conduit Box Location Exterior, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, Full Load Amps 5.2/2.6, Height 6 5/8 in, HP 2, Ins. Class B, Length Less Shaft 9 15/16 in, Max. Ambient Temp. 104 Degrees F, Motor Application General Application, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 10.50
- Package Height: 10.00
- Package Weight: 30.00
