Farm Duty Motor, Capacitor-Start, 3/4 HP, 115/230V AC, 1, 725 Nameplate RPM, K56 Frame MPN:C312
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G300722814

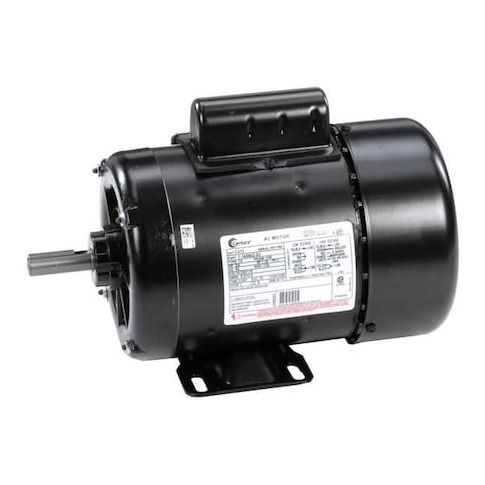

Farm Duty Motor, Capacitor-Start, 3/4 HP, 115/230V AC, 1, 725 Nameplate RPM, K56 Frame
This Farm Duty Motor is designed for heavy-duty use in agricultural settings, offering reliable performance and efficient operation. With a 3/4 HP capacity and 1,725 nameplate RPM, it can handle demanding tasks with ease. The capacitor-start design provides a boost to motor efficiency, while the totally enclosed fan-cooled enclosure keeps it running smoothly even in harsh environments. Suitable for applications such as irrigation pumps, grain handling equipment, and other farm machinery, this motor is built to withstand the rigors of continuous use. Its compact design and rugged construction make it an ideal choice for agricultural operations.
Top product features:
- Totally Enclosed Fan Cooled design for improved reliability and reduced maintenance
- Single Phase motor design for compatibility with standard household power
- Capacitor-Start motor design for increased efficiency and power density
Top product applications:
- Pump applications
- Compressor applications
- Fans and blowers for industrial use
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.2/10.4 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.90
- Package Width: 11.00
- Package Height: 10.50
- Package Weight: 31.70
Product info last updated on February 27, 2026 1:18pm UTC
Category: Motors
