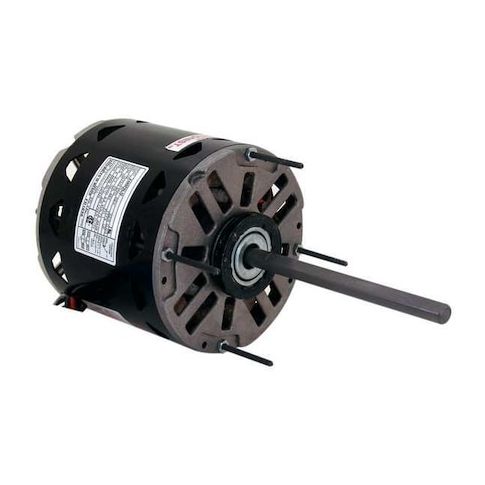

Motor, PSC, 1/6 HP, 1075 RPM, 115V, 48Y, OAO MPN:FDL1016
Motor, PSC, 1/6 HP, 1075 RPM, 115V, 48Y, OAO
This 1/6 HP, 115V motor is a reliable and efficient solution for a variety of applications, including residential and commercial HVAC systems, ventilation fans, and blowers. With a permanent split capacitor design and 1075 RPM, it provides consistent performance and quiet operation. The motor is designed for use in open air over environments and features a resilient ring mounting type, making it easy to install and maintain. Its compact size and lightweight design make it ideal for a range of applications, from small residential units to larger commercial spaces, providing a cost-effective and reliable solution for your needs.
Top product features:
- Permanent Split Capacitor motor design
- Three speed operation
- CW/CCW motor shaft rotation
Top product applications:
- Home Air Conditioning Systems
- Residential Forced Air Heating Systems
- Commercial Ventilation Systems
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 115V AC, 3.02 A Full Load Amps, 48Y Frame, Output Watts 130 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.20
- Package Width: 7.40
- Package Height: 7.70
- Package Weight: 10.45
Product info last updated on February 7, 2026 4:57pm UTC
Category: Motors
