Motor, Sh Pole, 1/15 HP, 1050, 115V, 42Y, TEAO MPN:U6433
Motor, Sh Pole, 1/15 HP, 1050, 115V, 42Y, TEAO

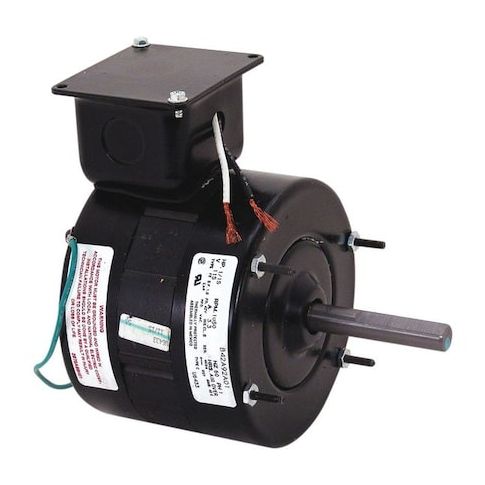

This 1/15 HP single-phase motor is designed for use in unit heaters, providing reliable and efficient operation. With a shaded pole design and 1,050 RPM, it offers a high power-to-size ratio, making it ideal for compact installations. The motor is suitable for 115V AC applications and can operate continuously in temperatures up to 40°C. Its totally enclosed non-ventilated (TEAO) design ensures durability and protection from the environment. Suitable for use in a variety of applications, including residential and commercial heating systems, this motor is a reliable choice for those seeking a high-performance, low-maintenance solution.
Top product features:
- Totally Enclosed Non-Ventilated motor enclosure design provides protection from dust and debris.
- Continuous duty cycle allows for prolonged operation without overheating.
- Shaded pole motor design provides efficient operation at low horsepower.
Top product applications:
- Unit Heater
- Ventilation System
- Air Purification System
Unit Heater Motor, Single Phase, Motor Design Shaded Pole, 1/15 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 1, Voltage 115V AC, 3 A Full Load Amps, 42Y Frame, Output Watts 50 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.10
- Package Width: 6.90
- Package Height: 7.40
- Package Weight: 8.35
Product info last updated on February 24, 2026 7:25pm UTC
Category: Motors
