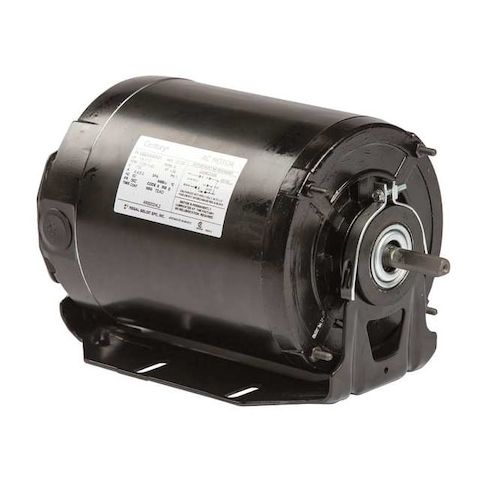

Split-Phase Belt Drive Motor, 1/4, 1/12 HP, 56Z Frame, 115V AC Voltage, 1, 725/1, 140 Nameplate RPM MPN:ARB2024L2
Split-Phase Belt Drive Motor, 1/4, 1/12 HP, 56Z Frame, 115V AC Voltage, 1, 725/1, 140 Nameplate RPM
This Century Split-Phase Belt Drive Motor is a reliable and efficient solution for various applications, including fans and blowers. With a 1/12 HP rating and 115V AC voltage, it provides continuous operation at a maximum ambient temperature of 40 degrees C. The motor's totally enclosed air-over design ensures protection from dust and moisture, while its cradle base mounting type provides easy installation. Suitable for use in a variety of settings, including residential and commercial spaces, this motor offers a cost-effective and durable solution for fans and blowers, making it an ideal choice for applications where reliability and efficiency are paramount.
Top product features:
- Split-phase belt drive motor design provides a reliable and efficient power transmission system.
- Totally enclosed air-over motor enclosure protects internal components from dust and moisture.
- Continuous duty cycle allows for uninterrupted operation over extended periods.
Top product applications:
- Dust Collector Fan
- Ventilation System Fan
- Industrial Blower
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/12 hp, 1/4 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 4.4/3.0 A Full Load Amps, 56Z Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.20
- Package Width: 8.20
- Package Height: 9.30
- Package Weight: 23.70
Product info last updated on January 29, 2026 2:15pm UTC
