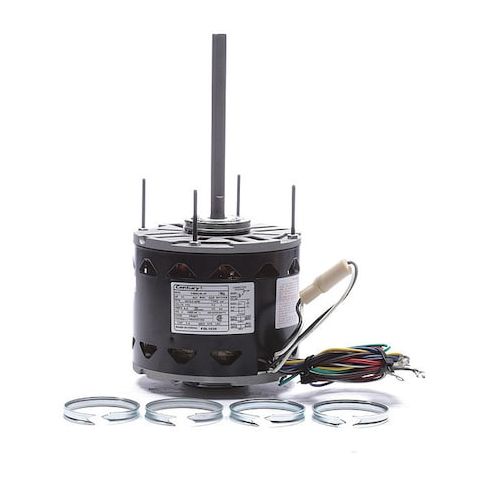

Motor, PSC, 1/3 HP, 1075 RPM, 115V, 48Y, OAO MPN:FDL1036
Motor, PSC, 1/3 HP, 1075 RPM, 115V, 48Y, OAO
This 1/3 HP PSC motor from Century is designed for reliable operation in a variety of applications, including fans and blowers. With a nameplate RPM of 1,075, it provides efficient performance and meets the demands of single-phase systems. The motor's permanent split capacitor design ensures smooth operation and reduced energy consumption. Suitable for use in 115V AC systems, it offers a high level of flexibility and can be easily integrated into existing infrastructure. Ideal for use in residential and commercial settings, this motor is a reliable choice for fans, blowers, and other applications requiring a compact and efficient solution.
Top product features:
- Permanent Split Capacitor motor design
- Operates at 115V AC with 5.09 A Full Load Amps
- Thermal protection is automatic
Top product applications:
- HVAC Systems
- Ceiling Fans
- Industrial Ventilation Systems
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 115V AC, 5.09 A Full Load Amps, 48Y Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.30
- Package Width: 6.80
- Package Height: 6.80
- Package Weight: 15.00
