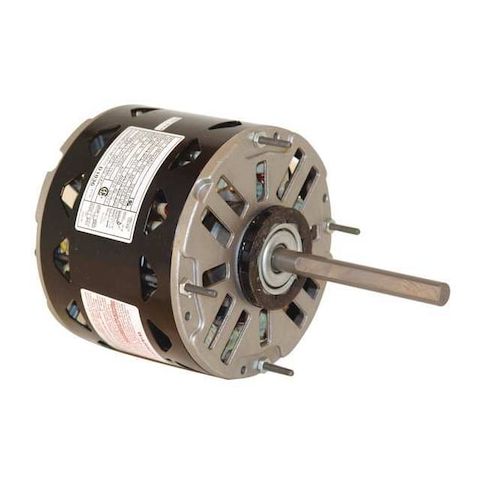

Motor, PSC, 1/4 HP, 1075, 208-230V, 48Y, OAO MPN:D1026
Motor, PSC, 1/4 HP, 1075, 208-230V, 48Y, OAO
This 1/4 HP, single-phase motor from Century is designed for a wide range of applications, including fans and blowers. With a permanent split capacitor design and 1075 RPM nameplate speed, it provides efficient and reliable operation. Suitable for use at 208-230V AC, this motor is ideal for applications in commercial and industrial settings. Its compact size and open-air design make it easy to install and maintain. With a maximum ambient temperature of 40 degrees C and auto thermal protection, this motor ensures safe and reliable operation, making it a great choice for fans, blowers, and other applications requiring a reliable motor.
Top product features:
- Permanent Split Capacitor motor design
- Single Phase motor operation
- Three speed motor operation
Top product applications:
- Air Handling Units
- HVAC Systems
- Commercial Ventilation Systems
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 208-230V AC, 2.0 A Full Load Amps, 48 Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.10
- Package Width: 8.00
- Package Height: 8.00
- Package Weight: 12.00
Product info last updated on February 1, 2026 8:32am UTC
Category: Motors
