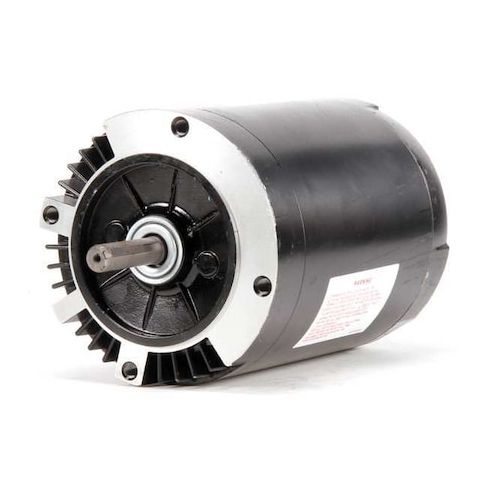

Motor, Split Ph, 1/4 HP, 1725, 115V, 56CZ, ODP MPN:F393L
Motor, Split Ph, 1/4 HP, 1725, 115V, 56CZ, ODP
This 1/4 HP single-phase motor from Century is designed for a variety of applications, including industrial and commercial use. Its split-phase design provides efficient power and long motor life, while its open drip-proof enclosure protects against dust and moisture. With a nameplate RPM of 1725 and a 1.35 service factor, this motor is suitable for continuous operation in temperatures up to 40 degrees C. Its compact size and C-face mounting make it easy to integrate into existing systems, making it an ideal choice for applications such as pumps, fans, and conveyor systems.
Top product features:
- Split-Phase motor design
- 1/4 HP continuous-duty operation
- 1725 RPM output
Top product applications:
- Pump and water treatment systems
- Fans and blowers for industrial applications
- Conveyor systems and material handling equipment
C-Frame Motor, Single Phase, Motor Design Split-Phase, 1/12 hp, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 2, Voltage 115V AC, 5.0/3.0 A Full Load Amps, 56CZ Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type C-Face
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.20
- Package Width: 9.20
- Package Height: 10.60
- Package Weight: 29.60
Product info last updated on February 1, 2026 4:56am UTC
Category: Motors
