Condenser Fan Motor, 2 hp MPN:H699
Condenser Fan Motor, 2 hp

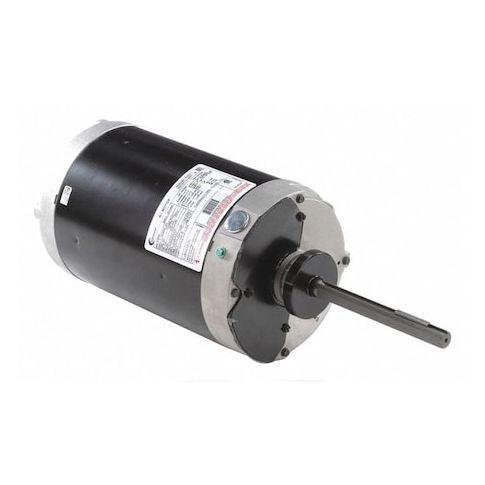

This 2 hp condenser fan motor from Century is a reliable and efficient solution for various applications. Suitable for use in 208-230/460V AC environments, it provides continuous operation at 1,140 RPM. With a motor service factor of 1 and auto thermal protection, it ensures smooth and safe operation. The open-air design and belly band mounting type make it easy to integrate into existing systems. Perfect for commercial and industrial settings, this motor is ideal for use in HVAC, refrigeration, and other condenser fan applications where high reliability and efficiency are crucial.
Top product features:
- Three-phase operation
- Continuous duty cycle
- Auto thermal protection
Top product applications:
- HVAC systems
- Air conditioning units
- Industrial cooling systems
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 3.1/6.8-6.2 A Full Load Amps, 56Y Frame, Output Watts 1500 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.90
- Package Width: 7.90
- Package Height: 10.80
- Package Weight: 43.45
Product info last updated on March 2, 2026 10:29pm UTC
Category: Motors
