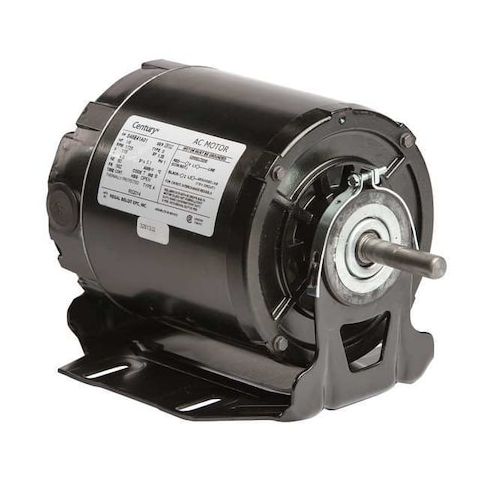

Split-Phase Belt Drive Motor, 1/6 HP, 56Z Frame, 115V AC Voltage, 1, 725 Nameplate RPM MPN:RS2014
Split-Phase Belt Drive Motor, 1/6 HP, 56Z Frame, 115V AC Voltage, 1, 725 Nameplate RPM
This 1/6 HP, 56Z frame split-phase belt drive motor from Century is designed for use in a variety of applications, including fans and blowers. With a nameplate RPM of 1,725 and a maximum ambient temperature of 40 degrees C, it can operate in a range of environments. Its continuous duty cycle and motor thermal protection make it suitable for high-demand applications. The motor's open design and cradle base mounting make it easy to install and maintain. With a lead time of just one day, this motor is perfect for businesses that need to quickly replace or upgrade their equipment.
Top product features:
- Split-Phase Belt Drive Motor design for efficient power transmission
- Operates at 1,725 Nameplate RPM for high-speed applications
- Motor enclosure is designed as Open to allow for easy maintenance and access
Top product applications:
- Heating and cooling systems
- Industrial ventilation systems
- Portable air compressors
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/6 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 4.9 A Full Load Amps, 56Z Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open, Motor Mounting Type Cradle Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.10
- Package Width: 8.00
- Package Height: 9.30
- Package Weight: 12.55
Product info last updated on February 6, 2026 1:45am UTC
Category: Motors
