Motor, PSC, 1/3 HP, 1075, 208-230V, 48Y, OAO MPN:FD1036
Motor, PSC, 1/3 HP, 1075, 208-230V, 48Y, OAO

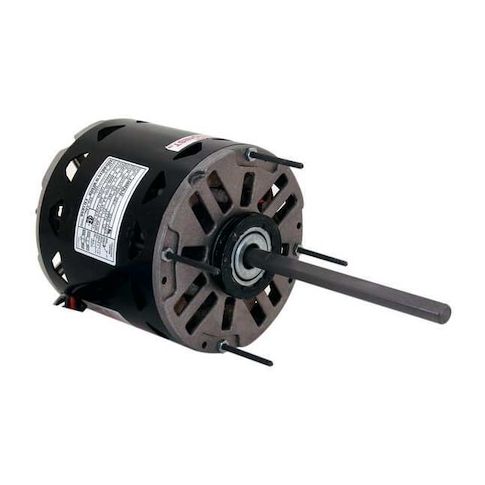

This 1/3 HP PSC motor from Century is a reliable and efficient solution for various applications. Suitable for use in fan and blower systems, it operates at 1,075 RPM with a 3-speed design, making it adaptable to different requirements. The motor is rated for 208-230V AC, 3.02 A full load amps, and 250 W output. Its open air over design and resilient ring mounting ensure optimal performance and durability. With a maximum ambient temperature of 50°C, this motor is ideal for use in a variety of settings, including commercial and industrial environments, where its high efficiency and reliability can provide consistent performance and cost savings.
Top product features:
- Permanent Split Capacitor motor design
- 1,075 RPM nameplate speed
- Three speed operation
Top product applications:
- Ventilation systems for residential and commercial buildings
- Industrial air circulation systems
- HVAC systems for small to medium-sized buildings
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 208-230V AC, 3.02 A Full Load Amps, 48Y Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.30
- Package Width: 6.80
- Package Height: 6.80
- Package Weight: 15.00
Product info last updated on February 1, 2026 10:08am UTC
Category: Motors
