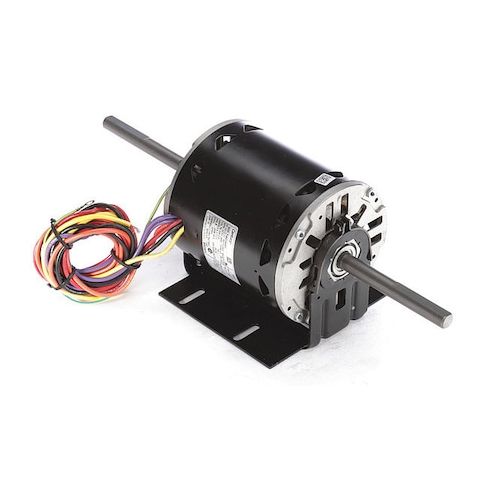

Motor, 3/4, 1/2, 1/3 HP, OEM Replacement Brand: Lennox Replacement For: 31C8201 MPN:9406A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2033650
Motor, 3/4, 1/2, 1/3 HP, OEM Replacement Brand: Lennox Replacement For: 31C8201
This 1/3 to 3/4 horsepower motor is a reliable OEM replacement for the Lennox 31C8201, designed for use in single-phase applications. Its permanent split capacitor design ensures efficient operation, while its 3-speed capability allows for adaptability to various load requirements. The motor's compact 48Y frame and open air over design make it an ideal choice for space-constrained installations. Suitable for use in a wide range of applications, including HVAC systems, the motor features auto thermal protection and a maximum ambient temperature rating of 40 degrees C. Its durable construction and long lifespan make it a cost-effective solution for many industries.
Top product features:
- Single Phase design for use in various applications
- Permanent Split Capacitor motor design for improved efficiency and reliability
- Three-speed motor for adjustable power output
Top product applications:
- Heating and Air Conditioning Systems
- Air Handlers
- Packaged Units
Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 208-230V AC, Full Load Amps 6.6/3.7/2.5 A, 48Y Frame, OEM Replacement Brand Lennox, Replacement For 31C8201, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.60
- Package Width: 10.20
- Package Height: 9.70
- Package Weight: 24.50
Product info last updated on January 31, 2026 11:55pm UTC
Category: Motors
